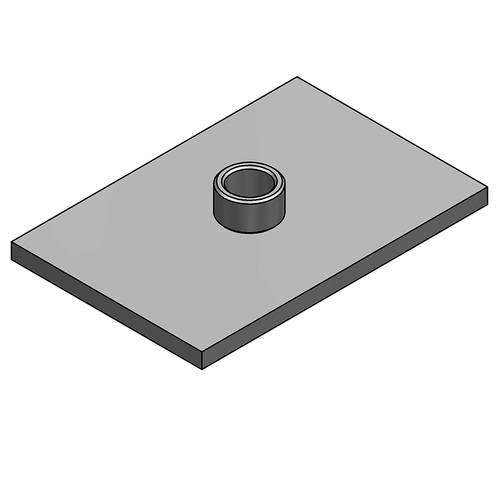

Sliding plate 150 x 100 x 8
PDF sheet
Sliding plate 150 x 100 x 8
CAD Download
rfa sat dwg dxf

Sliding plate 150 x 100 x 8

Connection 1 x 3/4''

Part no. 0771227
EAN/GTIN 4250928418258
Packing unit 1 pcs
Quantity unit pcs
Weight 1,01 kg/pc
Product group 04-077
Price unit 100

Your price
Quantity (pcs):

Product filter:

by max. sliding distance axial standing [mm]

100 150 200 250 300 350

by max. sliding distance axial hanging [mm]

20 70 120 160 200 250

by Connection

1 1/4'' 1'' 1/2'' 3/4'' M16

by Number of connections

1 2

by load Fz [kN]

1.5 2.2 3 4.2 4.4 4.8 5.4 5.6 6 6.4 7.4 8.1 10.2
Material Steel
Material type S235
Surface galvanized
Connection 3/4''
Width 100 mm
load Fz 1.5 kN
Length 150 mm
Thickness 8 mm
Number of connections 1
max. sliding distance axial standing 100 mm
Note delivery time on demand
