COLD RESISTANT

STRONG SOLUTIONS - PRODUCT FOR REFRIGERATION

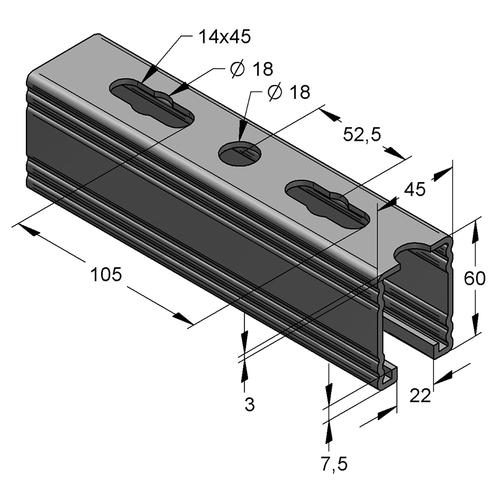

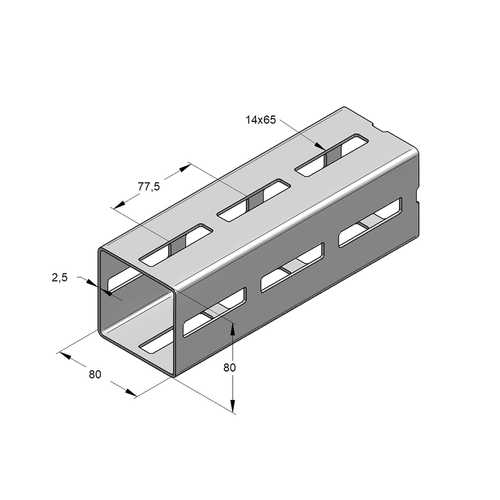

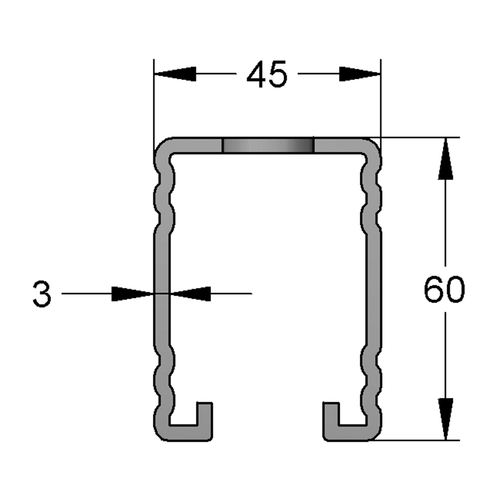

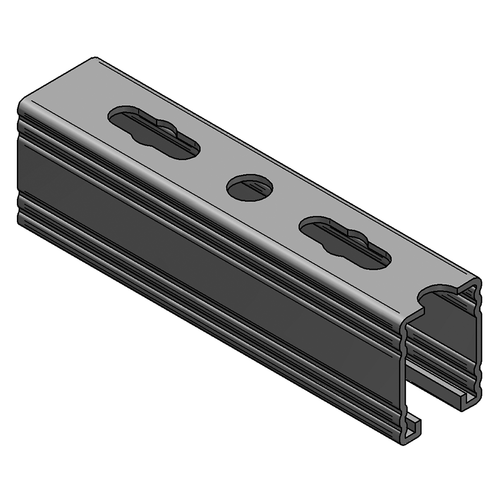

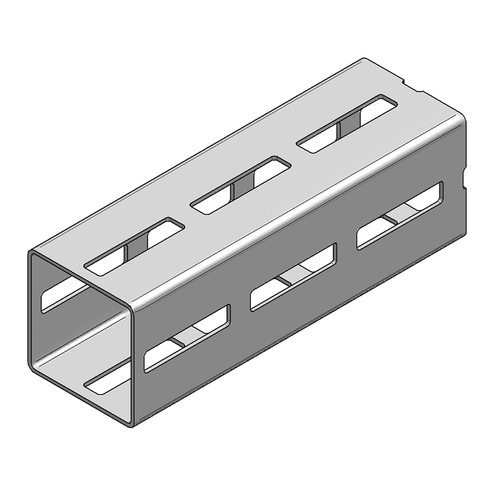

Insulating cold-going pipes against condensation places great demands on the quality of the materials, especially in the area of pipe supports. We offer our customers a wide range of safe and proven pipe supports, combined with RAL quality-assured and fire-tested pipe clamps. Furthermore, we are able to develop customer-specific solutions. Our range is rounded off by RAL quality-assured profile rail systems and mounting accessories. Our goal is to support refrigeration companies with optimal products and accompanying service.

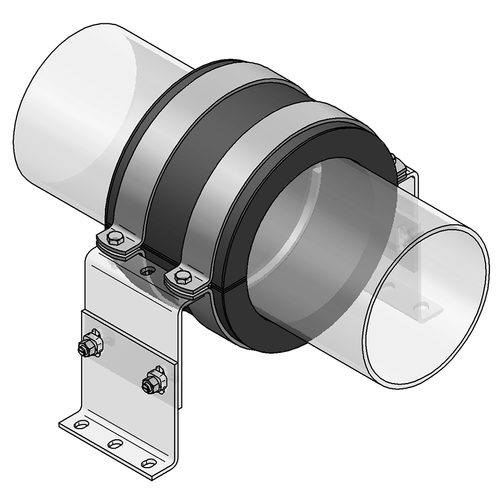

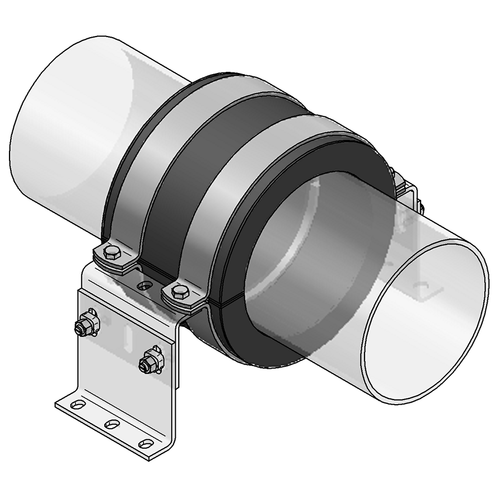

The main features of MEFA insulated pipe clamps

1) Vapour barrier

All MEFA insulated pipe clamps are equipped with a vapour barrier in compliance with "AGI Q03, vapour barrier".

Polar plus: acrylic dispersion

Husky: plastic jacket

ALU/PU >80<: aluminum

2) Insulating core

The insulating shells used for all insulated pipe clamps, in combination with the vapour barrier as a total system, have a water vapour diffusion resistance number of μ >= 7000 (total system), thus ensuring system conformity with the leading insulation manufacturers.

Polar plus: PU 145

Husky: PU 120

ALU/PU >80<: PU 80

3) Connection insulation

The MEFA insulated pipe clamps are designed for problem-free bonding with common insulating materials (e.g. rubber). The face side of the ALU/PU >80< insulated pipe clamp can be processed without any problems using solvent-based adhesive from the market leaders*.

Polar plus: closed-cell rubber

Husky: closed-cell rubber

ALU/PU >80<: PU

* Observe the manufacturer's processing instructions.

Polar plus

Our top solution

Highest quality insulated pipe clamp on the market
Shell and clamp form one unit (by bonding) therefore the insulating shell cannot get lost or has to be searched for and inserted later
Pipe clamp body is located outside insulation
Joint surfaces of half shells are sealed with a synthetic rubber cushion at joints
There is no need for gluing on site
Assembly unit can be opened again after closing
High water vapour diffusion resistance and low thermal conductivity
Rubber completion on face side

Husky

Our all-rounder

Excellent price-performance ratio
Consisting of a pipe clamp, PU pipe shells with synthetic rubber interface and PVC jacket
Plastic jacket of pipe support is overlapping, self-adhesive and closable
Joining surface of half-shells sealed with synthetic rubber cushion at joints (closure side)
High water vapour diffusion resistance and low thermal conductivity
Pipe clamp body is located outside insulation

ALU/PU >80<

Our cost reducer

Simple construction, thus particularly favorable
Consisting of two-part pipe clamp and ALU/PU-compound shell
ALU foil is overlapping, self-adhesive and resealable
Connecting surfaces of the pipe support half-shells are equipped with tongue and groove profiling
High water vapour diffusion resistance and low thermal conductivity
Pipe clamps located outside the insulation shells
ALU/PU >80< s version, with a short shell
Use of a sheet jacket (ALU/PU >80<) or half jacket (ALU/PU >80< s) is optionally possible
