Insulated fixpoint HV 1
76,1 mm Insulation 40 mm Shell length 148 mm
| Part no. | 698400076 |
| EAN/GTIN | 4250928441133 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 3,75 kg/pc |
| Product group | 03-698 |
| Price unit | 1 |
Your price
|
|
Product filter:
| Application area | Insulated fixpoint mounting of chilled water pipes of steel |
| Specification |
PUR (with natural rubber on front ends) High water vapor diffusion resistance and low thermal conductivity. Acc. AGI the requirements |
| Delivery |

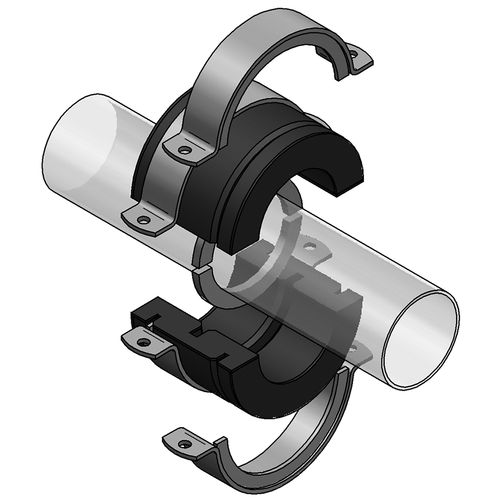

2 x half shell with slot for inner and outer split ring 2 x inner split ring for welding to steel pipe 4 x outer split ring for fixation on substructure |
| Material | PU |
| min. temperature resistance | -50 °C |
| max. temperature resistance | 105 °C |
| Density | 200 kg/m³ |
| Insulation thickness | 40 mm |
| Outer pipe diameter | 76.1 mm |
| Hole distance | 206 mm |
| Thermal conductivity | 0.037 W/mK |
| Length shell | 148 mm |
| Width outer split ring | 235 mm |

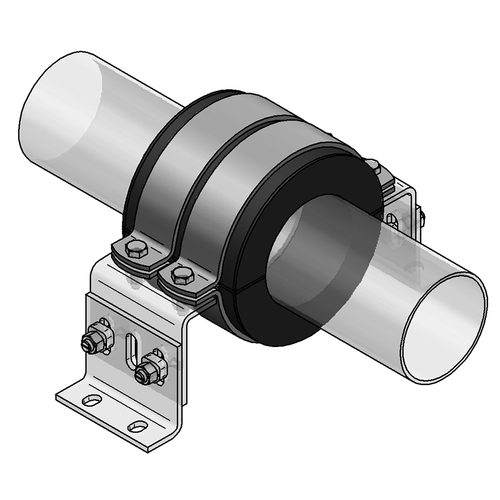

| Recommended fixpoint bracket<br /> [type] | HV1 |

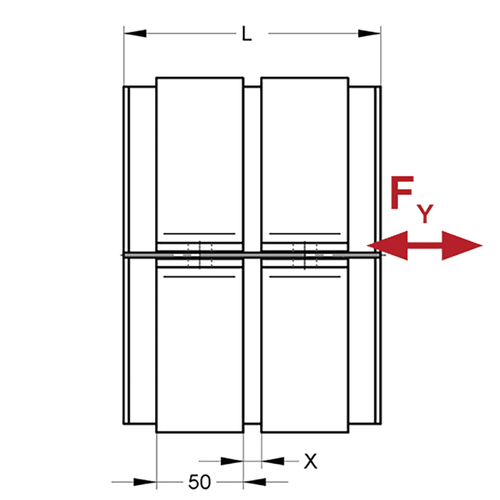

| load Fy | 2.7 kN |

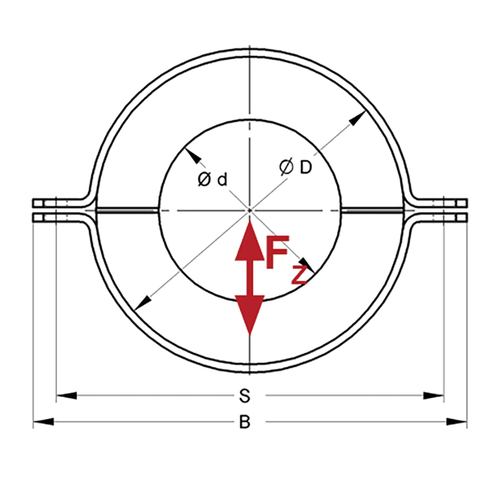

| load Fz | 5.4 kN |
