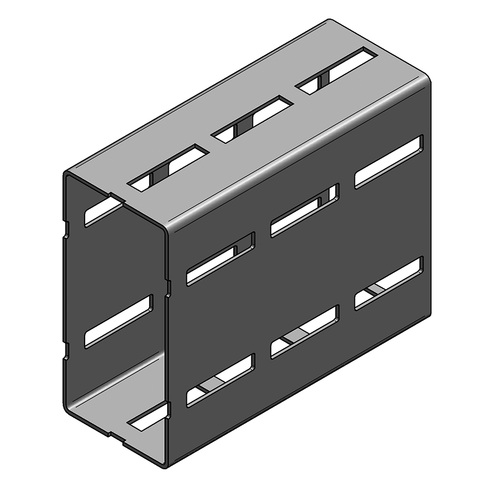

Profile rail CENTUM XL 200 WST
100 / 200 / 5 mm L= 8 m hot-dip galv.
| Part no. | 16020080 |
| EAN/GTIN | 4250928449405 |
| Packing unit | 8 m |
| Bundle | 32 m |
| Quantity unit | m |
| Weight | 20,46 kg/m |
| Product group | 14-160 |
| Price unit | 1 |
Your price
|
|
Product filter:
| Application area | Heavy-duty profile for modular industrial and plant construction. |
| Specification |
modular system 4-sided without raster in connection with mounting parts torsion stiffness high load capacity |
| Material | Steel |
| Material type | S235 |
| Surface | hot-dip galvanized |

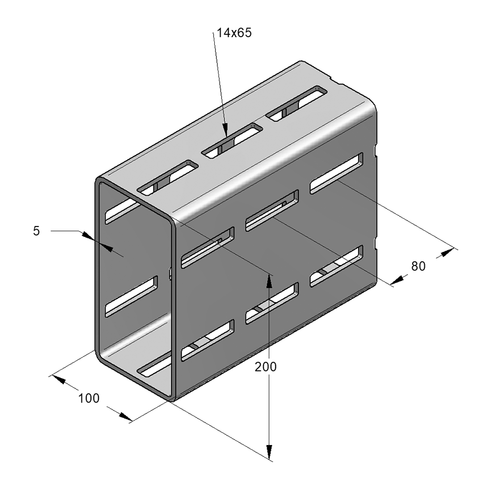

| Width | 100 mm |
| Height | 200 mm |
| Thickness | 5 mm |
| Length | 8 m |
| Elongated hole | 14x65 mm |
| Area (least cross section of the profile rail) | 24.15 cm² |
| Axial angular impulse ly | 1255.68 cm4 |
| Axial angular impulse lz | 433.47 cm4 |
| Grid dimension | 80 mm |
| Elastic limit | 275 N/mm² |
| Radius of inertia iy | 7.21 cm |
| Radius of inertia iz | 4.24 cm |
| Section modulus Wy | 125.56 cm³ |
| Section modulus Wz | 86.69 cm³ |
| Note | not certified acc. to RAL |
| Note | for delivery length 8 m please attend to special conditions |
