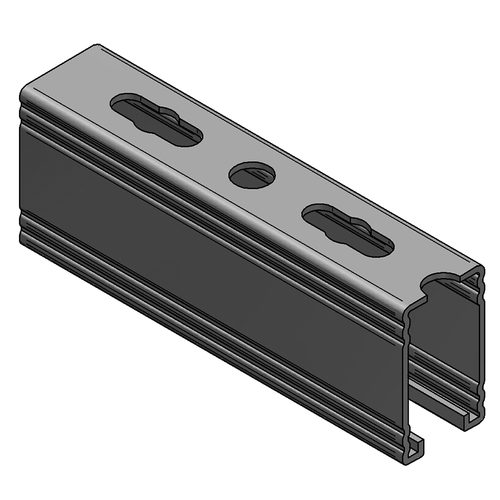

Profile rail C-profile
45 / 75 / 3 mm L= 6 m pre-galv.
| Part no. | 08207562 |
| EAN/GTIN | 4250928420787 |
| Packing unit | 30 m |
| Bundle | 180 m |
| Quantity unit | m |
| Weight | 4,82 kg/m |
| Product group | 02-082 |
| Price unit | 1 |
Your price
|
|
Product filter:
by Surface
| Application area | Medium weight mounting rail with quick connection option. |
| Specification | C-profile rail, perforated and toothed |
| Type of attachment | form-locking connections and shear hole haunch connections |
| Material | Steel |
| Material type | S250 |
| Surface | pre-galvanized |

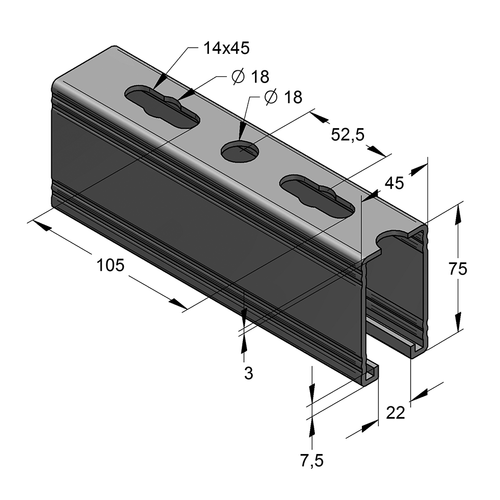

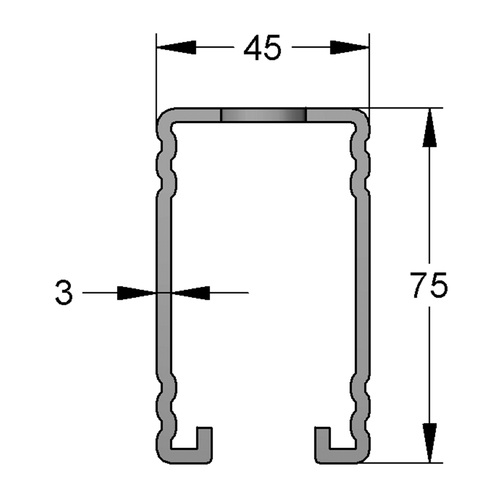

| Width | 45 mm |
| Height | 75 mm |
| Thickness | 3 mm |
| Length | 6 m |
| Hole-Ø | 18,00 mm |
| Elongated hole | 14x45 mm |
| Expansion elongated hole | 18,0 mm |
| Area (least cross section of the profile rail) | 5,66 cm² |
| Axial angular impulse lY | 35,36 cm4 |
| Axial angular impulse lZ | 21,90 cm4 |
| Grid dimension | 105,0 mm |
| Rail slot width | 22 mm |
| Centroid distance eo | 3,71 cm |
| Centroid distance eu | 3,79 cm |
| Centroid distance ez | 2,25 cm |
| Elastic limit | 250 N/mm² |
| Radius of inertia iy | 2,50 cm |
| Radius of inertia iz | 1,96 cm |
| Section modulus WY | 9,34 cm³ |
| Section modulus WZ | 9,74 cm³ |
| Notice | Full bundles, only |
