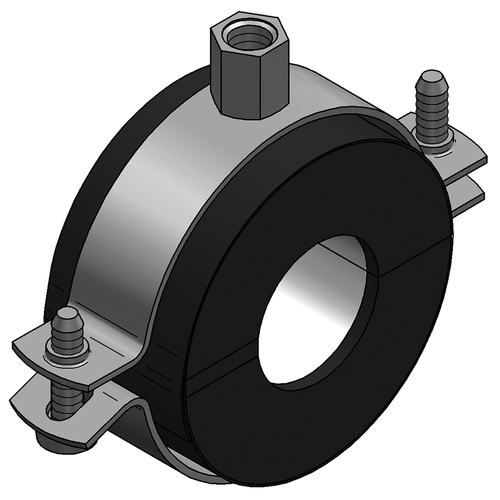

Insulated pipe clamp Husky IV 19
PDF sheet
Insulated pipe clamp Husky IV 19
CAD Download

Insulated pipe clamp Husky IV 19

110 mm Insulation 27.5 M10/M12

Part no. 6841101
EAN/GTIN 4250928440877
Packing unit 4 pcs
Quantity unit pcs
Weight 0,423 kg/pc
Product group 06-684
Price unit 1

Your price

Quantity (pcs):
Application area A thermal decoupled mounting of tubes guarantees a reliable prevention of condensate for refrigeration, air-conditioning and drinking water technologies in the sector pipe-clamping
Insulation body KA/PU
Material Steel
Material type DD11
Material coat Plastic
Surface galvanized
Class B2
min. temperature resistance -45 °C
max. temperature resistance 105 °C
Thermal conductivity 0.029 W/mK
Density core 120 kg/m³
Water vapour diffusion resistance 7000 µ
Connection M10/M12

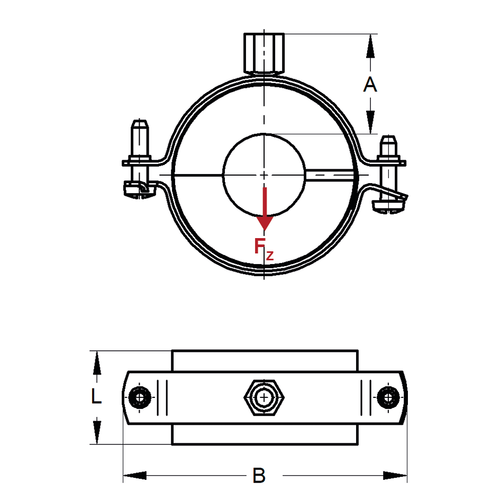

Connection height 52 mm
Width 215 mm
Insulation thickness 27.5 mm
load Fz 0.93 kN
Shell length 42 mm
statical load core 0.27 N/mm²
Note delivery time on demand
