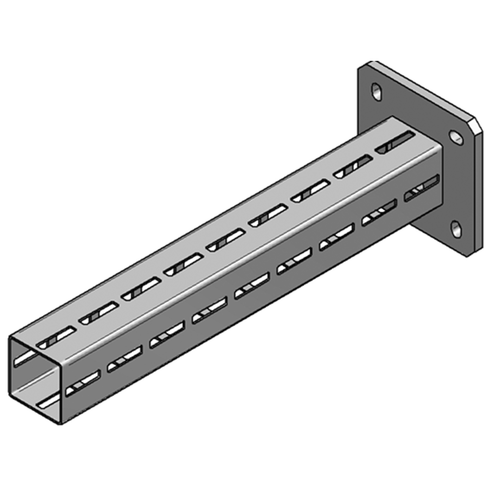

Console CENTUM XL 100
L= 1440 mm hot-dip galv.
| Part no. | 1631001440 |
| EAN/GTIN | 4250928436795 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 18,02 kg/pc |
| Product group | 14-163 |
| Price unit | 1 |
Your price
|
|
| Application area | Console for the production of cantilever structures for the support of suspended and standing pipe loads. |
| Material | Steel |
| Surface | hot-dip galvanized |

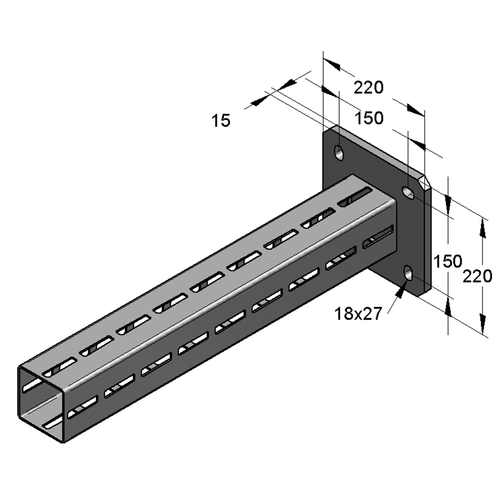

| Width plate | 220 mm |
| Length plate | 220 mm |
| Hole distance | 150 mm |
| Plate thickness | 15 mm |
| Width profile | 100 mm |
| Profile height | 100 mm |
| Length console L | 1440 mm |
| Elongated hole plate | 27x18 mm |
| load F1 | 8,08 kN |
| load F2 | 4,58 kN |
| load q0 | 5,61 kN/m |
| Profile thickness | 3 mm |
