PROFILE RAIL SYSTEMS
All important information about MEFA rail systems
MEFA profile rail systems:
More efficiency in fastening technology
Whether in the process industry, in building services engineering, or in complex ventilation installations - rail systems are used whenever cables, pipes, or ducts need to be secured safely and efficiently. They are an indispensable component in technical building equipment and in the process industry. MEFA rail systems have been among the most innovative systems on the market for years. They impress with their high load-bearing capacity, flexible application options, and well-thought-out detailed solutions. Today, high demands are placed on installation: it should not only be reliable, but also efficient, fast, and sustainable. MEFA offers a wide range of practical solutions for this purpose. Choosing the right profile rail is crucial for stability, installation time, and cost-effectiveness.
System concept!

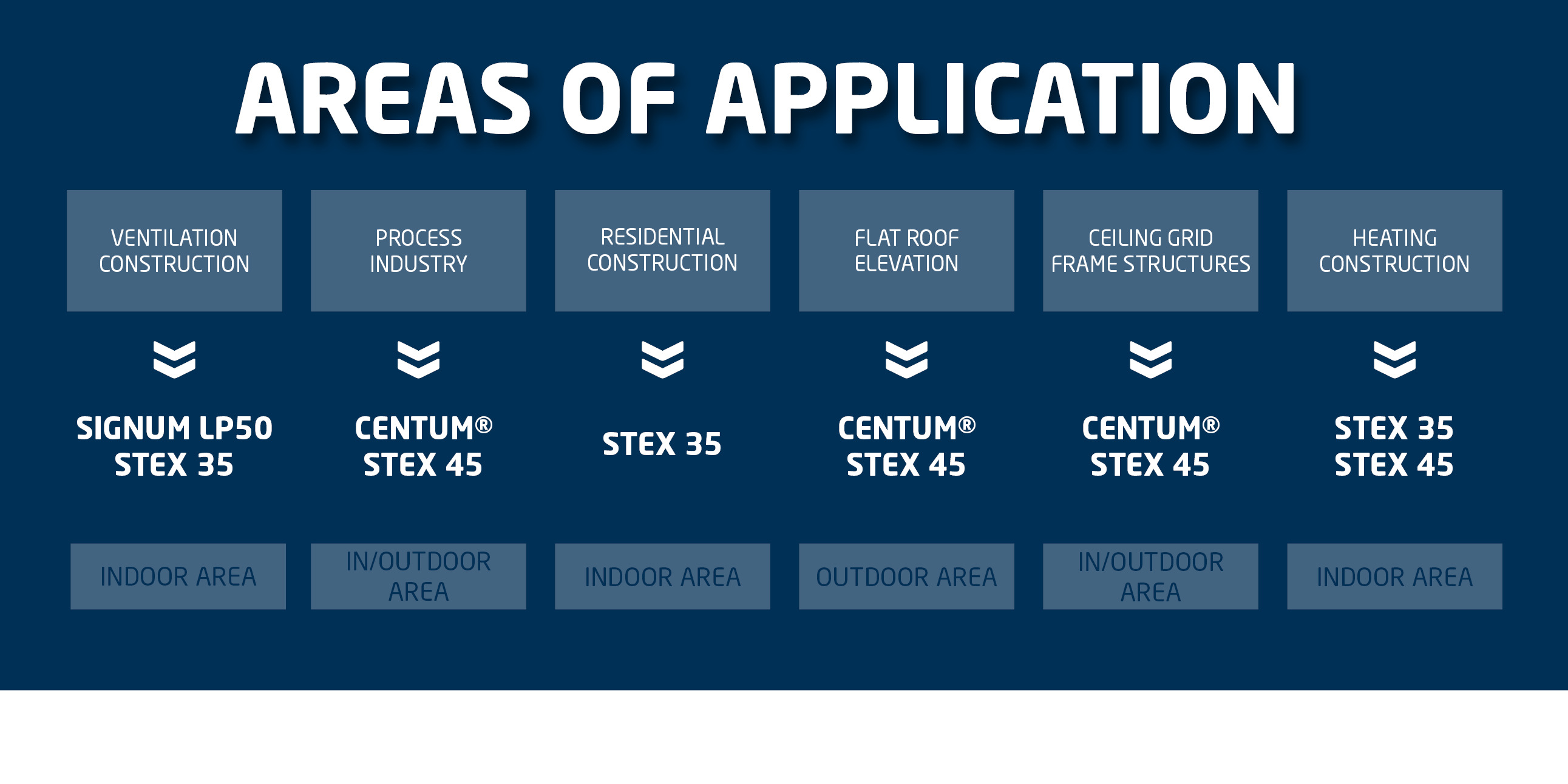

Whether for pipelines, ventilation ducts, or complex industrial plants, profile rail systems must not only be stable but also flexible in use. An important advantage of MEFA rail systems is their high level of compatibility with each other. The combination options between profiles such as Stex 35 and Stex 45, as well as Stex 45 with CENTUM®, enable a customized design that can be optimally adapted to the respective application.
Quick start: The Stex 35 rail system is ideal for light to medium loads. Its quick and easy installation makes it perfect for visible constructions. The system can be used for pipe clamp mounting and fastening ventilation ducts, and can be combined with the Stex 45 rail system.
High performance: The Stex 45 quick-assembly system was specially developed for time-saving and secure installation, offering 20% more load capacity than comparable systems on the market with the same material thickness. The RAL-certified profile rails also offer further advantages.
Modular system: CENTUM® is the ideal solution when heavy loads, such as those associated with large pipe dimensions, need to be safely and reliably supported. With its well-designed components and simple bolting system, CENTUM® offers decisive advantages over conventional welded steel constructions.
Planning reliability
The modular construction of the various systems also ensures long-term planning and use: extensions, adjustments, or conversions can be implemented easily at any time. This turns individual rails and components into a comprehensive rail system that optimally combines technology, cost-effectiveness, and sustainability.
NEW NOW:
Zinc-magnesium coating
There are various ways to protect steel against corrosion. One option is to use a zinc-magnesium coating. This protects components against corrosion thanks to its special properties. The coating works as follows: In outdoor constructions, various environmental influences cause a very dense, zinc-based protective film to form on the installed rail. This protective film also forms on edges, weld seams, perforations, and scratches. These bare and unprotected areas are gradually covered by the protective film and are sealed. MEFA now offers the 45/26/1,5 and 45/45/1,5 profile rails with a zinc-magnesium surface in its product portfolio. Depending on weather conditions, any red rust that may have formed is converted into white rust. This is the so-called self-healing effect of the zinc-magnesium coating. When used outdoors, this coating provides excellent surface and edge protection up to corrosivity category C4 high.
All profile rail systems at a glance
