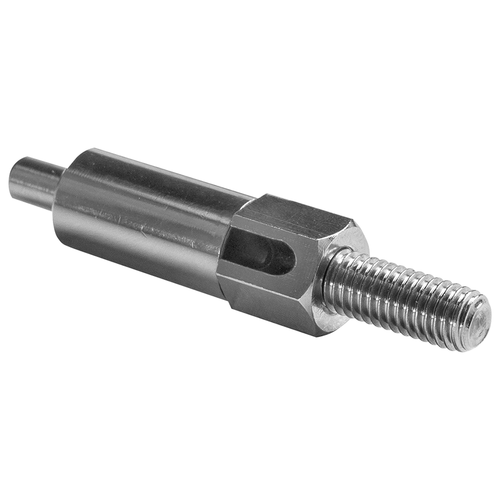

Wire rope system L-Fix connector tangential
M8 1,5 - 2,5 mm
| Part no. | 05985786 |
| EAN/GTIN | 4250928463340 |
| Packing unit | 10 pcs |
| Quantity unit | pcs |
| Weight | 0,0410 kg/pc |
| Product group | 08-983 |
| Price unit | 1 |
Your price
|
|
Product filter:
by Additive
| Application area |

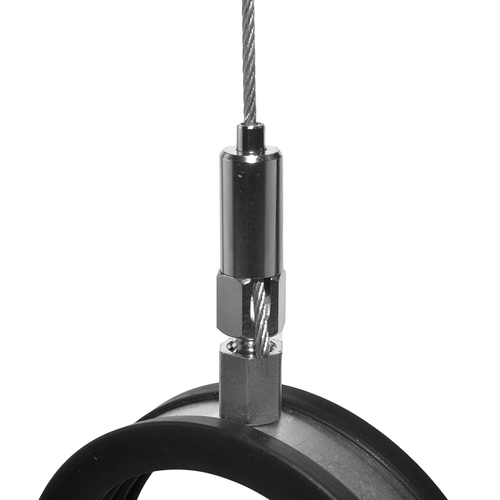

For fastening in products like e.g. M8 drop-in anchors and pipe clamps with step thread M8/M10. |
| Installation advise |

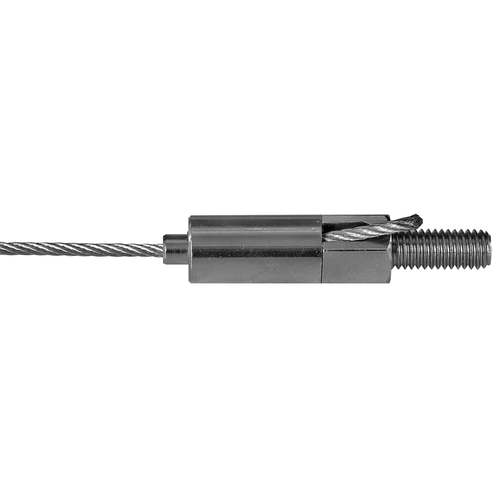

The tangential connector allows for variable height adjustment even if the rope cannot be guided "through" the ground. |
| Material | Steel |
| Surface | galvanized |
| Corrosion category | C2 very high |
| Surrounding area | Indoor area |
| Tension load at 1,5 mm | 0,32 kN |
| Tension load at 2,5 mm | 0,82 kN |
| Diameter wire | 1,5 - 2,5 mm |
| Thread | M8 |
| Length thread | 20 mm |
