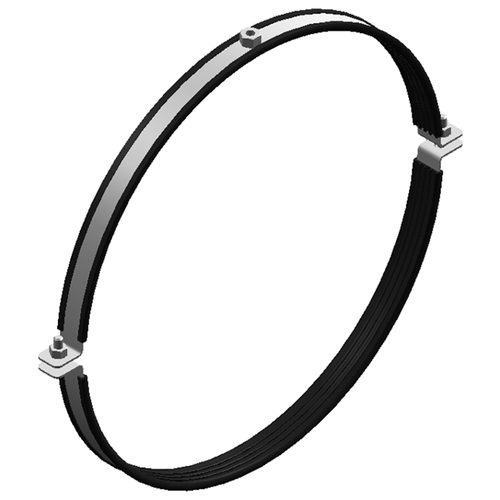

Ventilation pipe clamp Standard 20x2,5
CAD Download
Ventilation pipe clamp Standard 20x2,5
DN 250 M8 TPE
| Part no. | 0432501 |
| EAN/GTIN | 4250928409973 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 0,539 kg/pc |
| Product group | 08-043 |
| Price unit | 100 |
Your price
|
|
Product filter:
| Application area | pipe clamp for fixing ventilation pipes. |
| Specification | two-part |
| Connection | M8 |
| Closure | Nut / closure screw |
| Material | Steel |
| Material type | S235 |
| Surface | galvanized |
| Insulation thickness | 6 mm |
| Temperature resistance | -35 °C - 100 °C |
| Sound insulation lining | TPE |

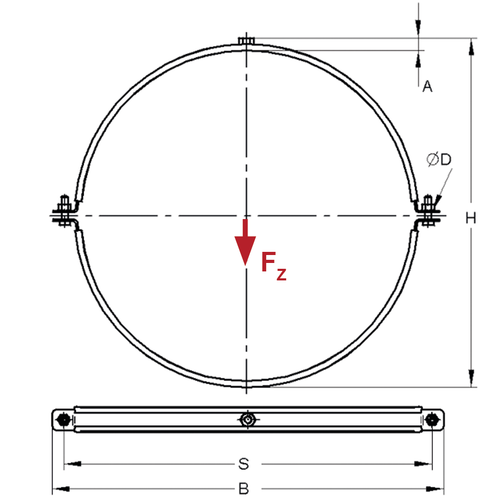

| Center distance S | 300 mm |
| Connection height A | 23 mm |
| Width B | 325 mm |
| Colour sound insulation lining | black |
| Höhe H | 283 mm |
| Material dimension | 20x2,5 mm |
| load FZ | 1,5 kN |
| Outer pipe diameter | 253 mm |
| Hole diameter D | 8,5 mm |
| Closure screw | M8 |
