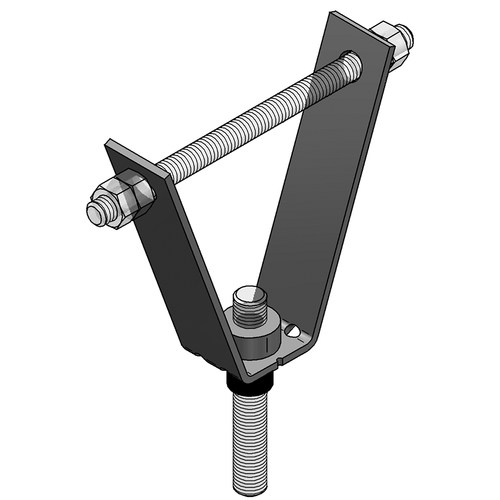

Trapeze hanger MU-B
M8
| Part no. | 0783803 |
| EAN/GTIN | 4250928418814 |
| Packing unit | 100 pcs |
| Quantity unit | pcs |
| Weight | 0,116 kg/pc |
| Product group | 05-078 |
| Price unit | 100 |
Your price
|
|
| Application area | For mounting the pipelines, ventilation ducts and profile rails directly under a trapeze sheeting. |
| Specification | Height regulator |
| Recommended accessories |
threaded bolt M8 / 110 hexagon nut M8, DIN 934 |
| Material | Steel |
| Material type | S235/DD11 |
| Surface | galvanized |

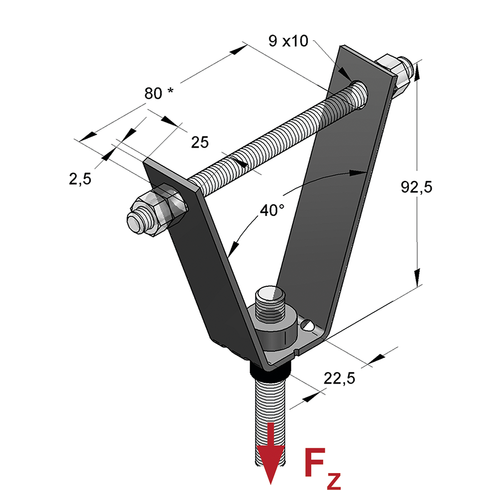

| Height | 92,5 mm |
| load FZ | 2 kN |
| Material thickness | 2,5 mm |
| Width material | 25 mm |
| Hole-Ø | 9,5 mm |
| Connection thread | M8 |
| Width absorption inside | 22,5 mm |
