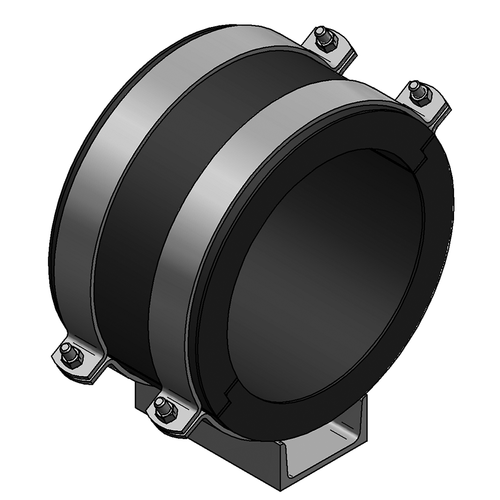

Sliding support U Polar Plus
219,1 mm Insulation 40 x 181 mm
| Part no. | 74742219 |
| EAN/GTIN | 4250928443021 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 7,79 kg/pc |
| Product group | 06-984 |
| Price unit | 1 |
Your price
|
|
| Specification | U-support |
| Material | Steel |
| Material type | S235 |
| Surface | galvanized |
| Insulation thickness | 40 mm |
| Width W | 336 mm |
| load FZ | 8,9 kN |
| Outer pipe diameter D | 219,1 mm |
| Material thickness | 5 mm |
| Width material | 50 mm |
| Width base b | 120 mm |
| Height base h | 55 mm |
| Length base L | 175 mm |
| Height base A | 90 mm |
| Length shell B | 181 mm |
| Delivery time | On demand. Exchange and return are excluded |
| Notice | Custom order on demand! |
