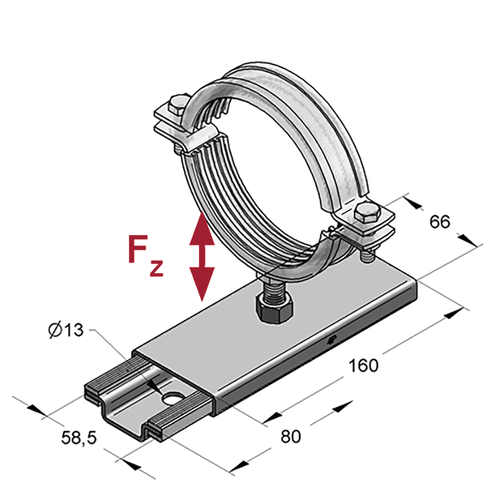

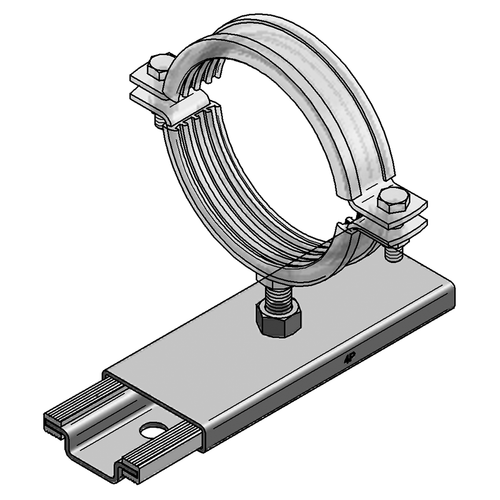

Slider axial GL 100 V4A
Connection 1 x M10
| Part no. | 0770550 |
| EAN/GTIN | 4250928463593 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 0,431 kg/pc |
| Product group | 13-054 |
| Price unit | 1 |
Your price
|
|
| Application area | absorption of axial length expansion of max. 75 mm for standing, hanging, horizontal or vertical passed pipes |
| Material sliding element | Stainless steel |
| Material type sliding element | V4A |
| Material sliding stripe | Plastic |
| Material name sliding stripe | Polyamide 6 |
| min. temperature resistance | -30 °C |
| max. temperature resistance | 100 °C |
| Width | 66 mm |
| Length | 160 mm |
| Connection | 1 x M10 |
| Number of connections | 1 |
| Thread | M10 |
| Static friction factor | 0,2 - 0,3 |
| max. sliding distance axial | 68 mm |
| load FZ | 2,5 kN |
| Hole-Ø | 13 mm |
| Delivery time | 5 working days, ex works |
