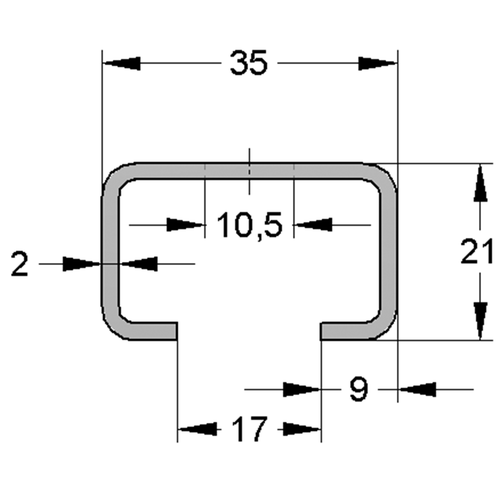

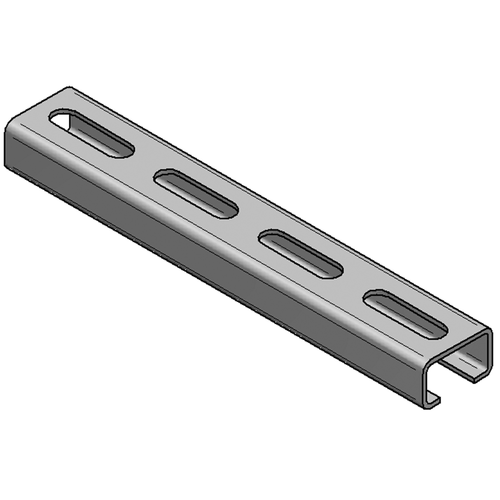

Profile rail C-profile V4A
35 / 21 / 2 mm L= 3 m
| Part no. | 0800151 |
| EAN/GTIN | 4250928419224 |
| Packing unit | 18 m |
| Bundle | 1080 m |
| Quantity unit | m |
| Weight | 1,21 kg/m |
| Product group | 13-054 |
| Price unit | 1 |
Your price
|
|
Product filter:
| Specification | untoothed, perforated |
| Material | Stainless steel |
| Material type | V4A |
| Width | 35 mm |
| Height | 21 mm |
| Thickness | 2 mm |
| Length | 3 m |

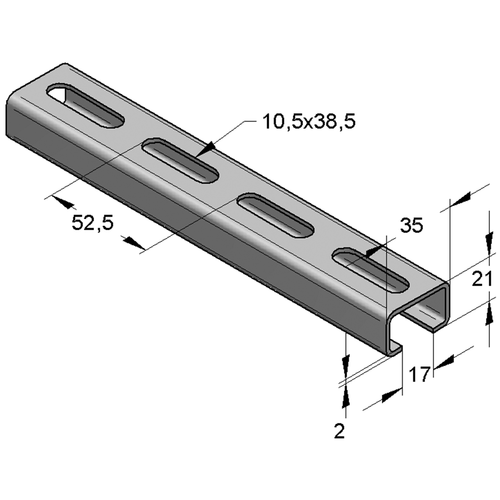

| Elongated hole | 10,5x38,5 mm |
| Area (least cross section of the profile rail) | 1,44 cm² |
| Axial angular impulse lY | 0,84 cm4 |
| Axial angular impulse lZ | 2,94 cm4 |
| Grid dimension | 52,5 mm |
| Rail slot width | 17,0 mm |
| Centroid distance eo | 0,97 cm |
| Centroid distance eu | 1,13 cm |
| Centroid distance ez | 1,75 cm |
| Elastic limit | 240 N/mm² |
| Radius of inertia iy | 0,76 cm |
| Radius of inertia iz | 1,43 cm |
| Section modulus WY | 0,74 cm³ |
| Section modulus WZ | 1,68 cm³ |
| Notice | Full bundle, only |
