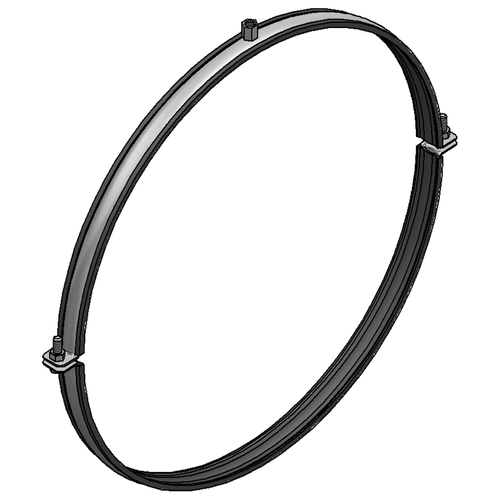

Pipe clamp Ventus 25x2,5
DN 630 M8/M10 EPDM
| Part no. | 0449932630 |
| EAN/GTIN | 4250928411396 |
| Packing unit | 10 pcs |
| Quantity unit | pcs |
| Weight | 1,40 kg/pc |
| Product group | 08-992 |
| Price unit | 100 |
Your price
|
|
Product filter:
| Application area | pipe clamp for fixing pipes. |
| Specification | two-part |
| Connection | M8/M10 |
| Closure | Closure screw |
| Material | Steel |
| Material type | S235 |
| Surface | galvanized |
| Insulation thickness | 3 mm |
| Temperature resistance | -35 °C - 100 °C |
| Sound insulation lining | Rubber EPDM |

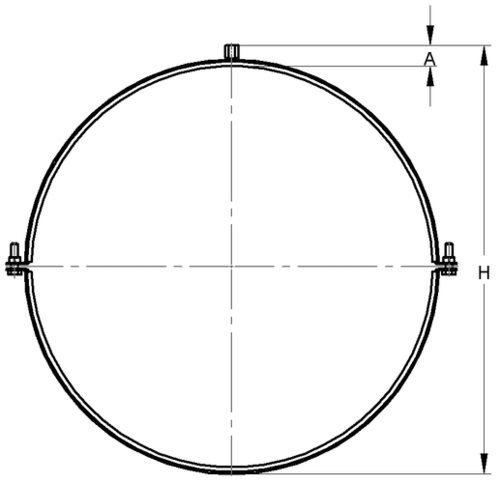

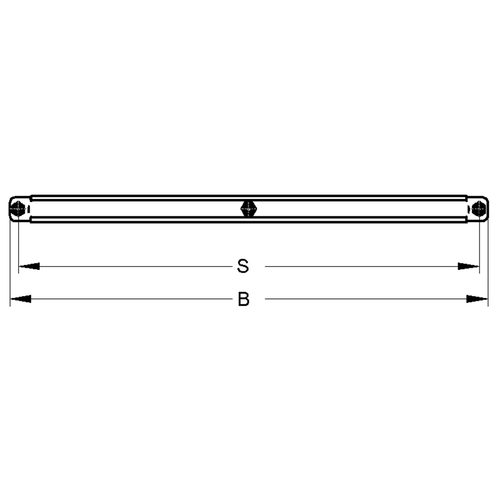

| Center distance S | 672 mm |
| Connection height A | 25 mm |
| Width B | 690 mm |
| Colour sound insulation lining | black |
| Höhe H | 665 mm |
| Material dimension | 25x2,5 mm |
| Outer pipe diameter | 632 mm |
| Closure screw | M8 |
