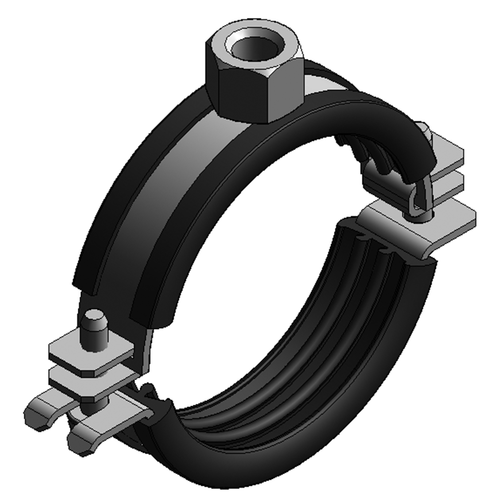

Pipe clamp Omnia MB 25x2,5
114 - 116 mm M12 TPE
| Part no. | 0398516 |
| EAN/GTIN | 4250928409010 |
| Packing unit | 25 pcs |
| Quantity unit | pcs |
| Weight | 0,333 kg/pc |
| Product group | 01-039 |
| Price unit | 100 |
Your price
|
|
Product filter:
| Application area | Pipe clamp for fixing pipes. |
| Specification | two-part |
| Connection | M12 |
| Closure | Slewable U-closure |
| Material | Steel |
| Material type | DD11 |
| Surface | galvanized |
| Insulation thickness | 6 mm |
| Temperature resistance | -35 °C - 100 °C |
| Sound insulation lining | TPE |
| Connection height A | 25 mm |
| Width B | 165 mm |
| Colour sound insulation lining | black |
| Height H | 144 - 146 mm |
| Material dimension | 25x2,5 mm |
| load FZ | 1,8 kN |
| Clamping range | 114 - 116 mm |
| Outside pipe diameter inch | 4 Zoll |
| Closure screw | M6 |
| Notice | suitable connection adapter see chapter 1 |
