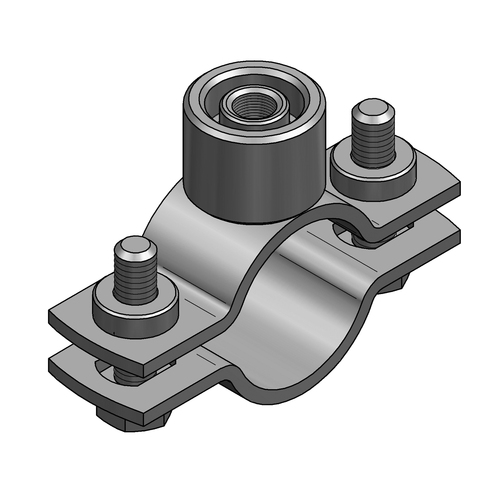

Pipe clamp Maxima PSM 3G 25x3
41 - 46 mm M8/M10 + 1/2'' unlined
Part no. | 0069097 |
EAN/GTIN | 4250928402738 |
Packing unit | 1 pcs |
Quantity unit | pcs |
Weight | 0,258 kg/pc |
Product group | 01-006 |
Price unit | 100 |
Your price
|
Product filter:
Application area | Clamp pipe clip for fixpoint FGL. Pipe clamp for fixing pipes. |
Specification | two-part |
Connection | M8/M10 + 1/2'' |
Closure | Pendulum stick nuts |
Material | Steel |
Material type | S235 |
Surface | galvanized |
Sound insulation lining | unlined |

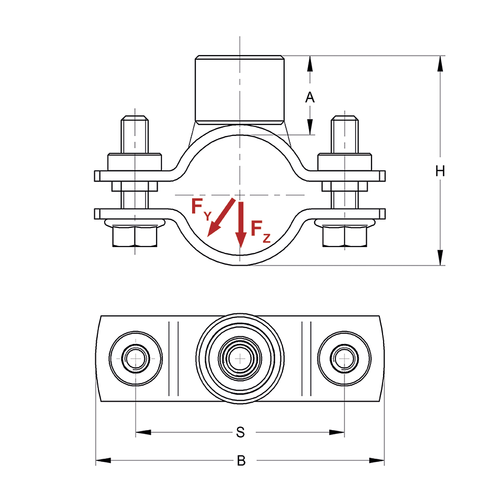

Center distance S | 74 mm |
Connection height A | 23 mm |
Width B | 98 mm |
Height H | 62 - 67 mm |
Material dimension | 25x3 mm |
load FY | 0,7 kN |
load FZ | 3 kN |
Clamping range | 41 - 46 mm |
Closure screw | M8 |
