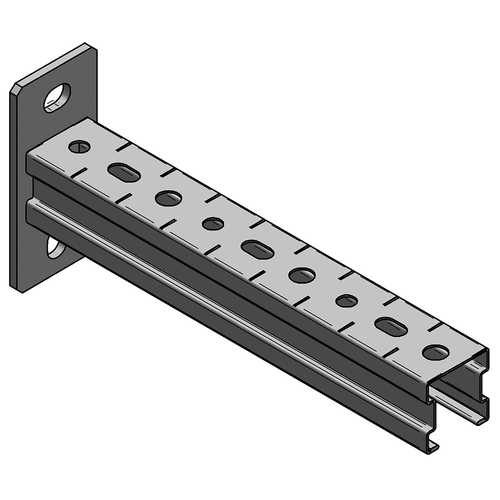

Console Stex 35/35
L= 150 mm Plate vertical galv.
| Part no. | 1274150 |
| EAN/GTIN | 4250928424471 |
| Packing unit | 25 pcs |
| Quantity unit | pcs |
| Weight | 0,285 kg/pc |
| Product group | 02-127 |
| Price unit | 1 |
Your price
|
|
| Application area | Console for the production of cantilever structures for the support of suspended and standing pipe loads. |
| Material | Steel |
| Surface | galvanized |

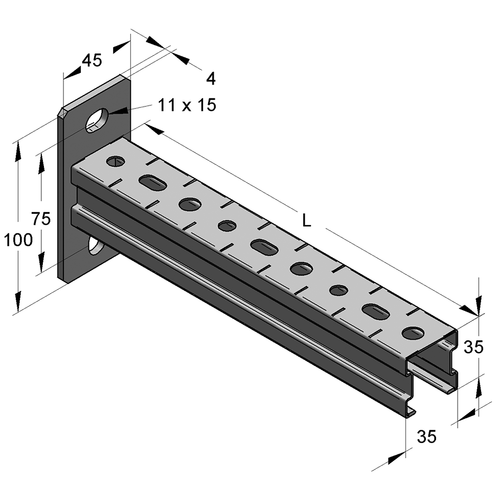

| Width plate | 45 mm |
| Length plate | 100 mm |
| Hole distance | 75 mm |
| Plate thickness | 4 mm |
| Width profile | 35 mm |
| Profile height | 35 mm |
| Length console L | 150 mm |
| Elongated hole plate | 11x15 mm |
| load F1 | 2,05 kN |
| load F2 | 1,02 kN |
| load q0 | 13,65 kN/m |
| Profile thickness | 1 mm |
