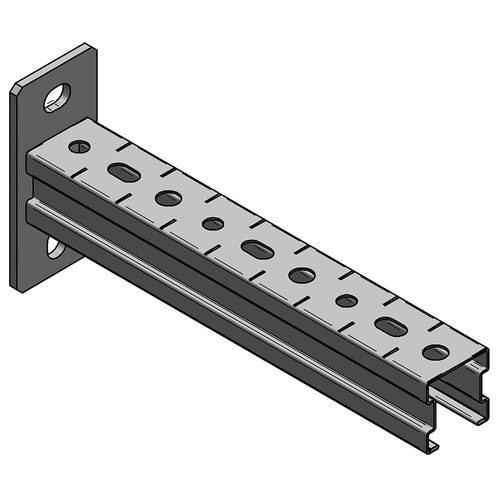

Console Stex 35/35
PDF sheet
Console Stex 35/35
CAD Download

Console Stex 35/35

L= 375 mm Plate vertical galv.

Part no. 1274375
EAN/GTIN 4250928424501
Packing unit 25 pcs
Quantity unit pcs
Weight 0,517 kg/pc
Product group 02-127
Price unit 1

Your price

Quantity (pcs):

Product filter:

Application area Console for the production of cantilever structures for the support of suspended and standing pipe loads.
Material Steel
Surface galvanized

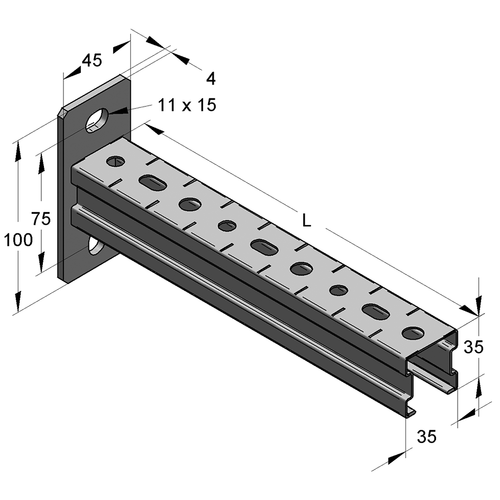

Width plate 45 mm
Length plate 100 mm
Hole distance 75 mm
Plate thickness 4 mm
Width profile 35 mm
Profile height 35 mm
Length console 375 mm
Elongated hole plate 11x15 mm
load F1 0.82 kN
load F2 0.41 kN
load q0 2.18 kN/m
Profile thickness 1 mm
