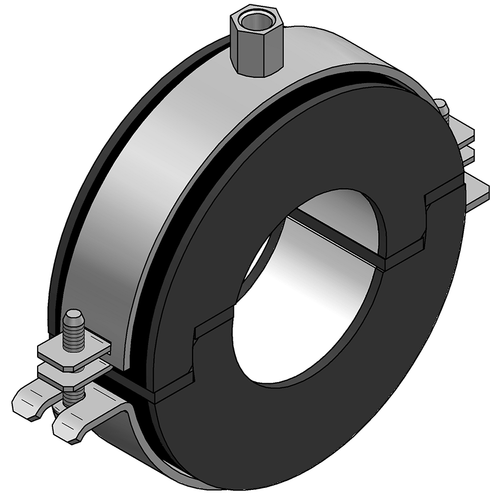

Insulated pipe clamp Polar Plus

21.3 mm Insulation 20 M8/M10

Part no. 74620210
EAN/GTIN 4250928442475
Packing unit 20 pcs
Price unit 1
Quantity unit pcs
Weight 0,118 kg/pc
Product group 06-746

Your price

Quantity (pcs):

Product filter:

Application area A thermal decoupled mounting of tubes guarantees a reliable prevention of condensate for refrigeration, air-conditioning and drinking water technologies in the sector pipe-clamping
Insulation body AC/PU
Material Steel
Material type DD11
Surface galvanized
Class B2
min. temperature resistance -50 °C
max. temperature resistance 105 °C
Thermal conductivity 0.031 W/mK
Density core 145 kg/m³
Water vapour diffusion resistance 7000 µ
Connection M8/M10

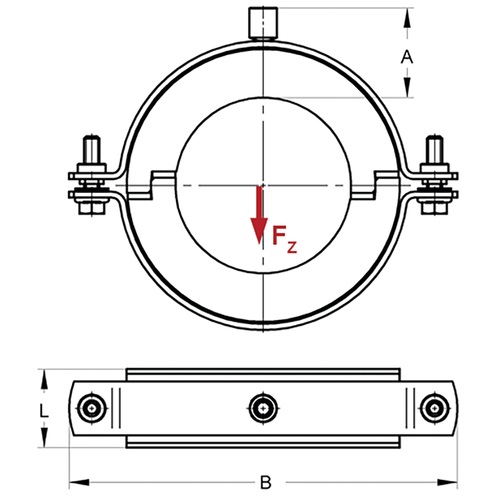

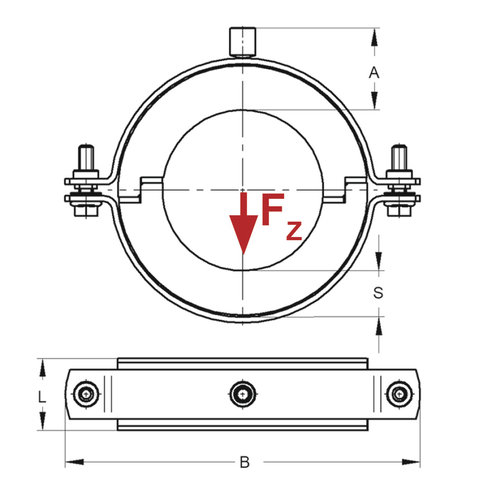

Connection height 37 mm
Width 92 mm
Insulation thickness 20 mm
load Fz 0.2 kN
Shell length 36 mm
statical load core 0.38 N/mm²
