Holder C-profile 45 vertical / horizontal
CAD Download
Holder C-profile 45 vertical / horizontal
for C-profile 45/26 - 45/52 hot-dip galv.
| Part no. | 0812002 |
| EAN/GTIN | 4250928459251 |
| Packing unit | 10 pcs |
| Quantity unit | pcs |
| Weight | 0,746 kg/pc |
| Product group | 02-081 |
| Price unit | 1 |
Your price
|
|
Product filter:
by Profile type
by Surface
by Alignment of plate
| Application area | for fixation of profile rails on construction |
| Profile type | 45/26 - 45/52 |
| Profile | C-profile |

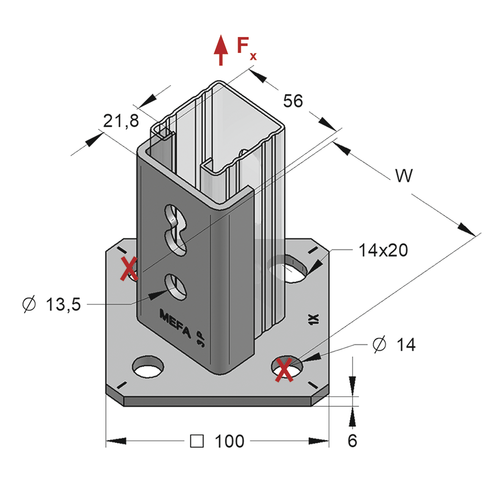

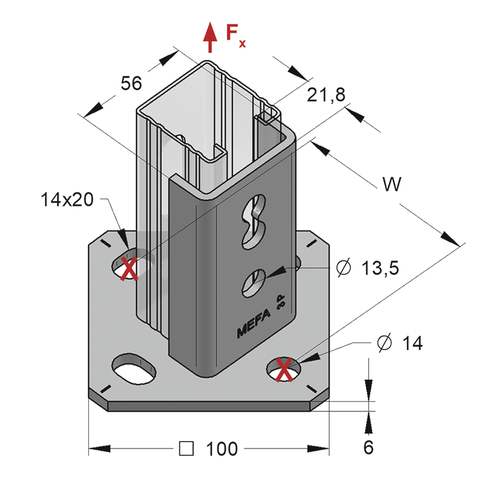

| Type of attachment | on the building structure, necessary dowel holes at X |
| Material | Steel |
| Material type | S235 |
| Surface | hot-dip galvanized |
| load FX | 15 kN |
| Hole-Ø | 14 mm |
| Length plate L | 100 mm |
| Width plate B | 100 mm |
| Plate thickness | 6 mm |
| Alignment of plate | vertical / horizontal |
| Hole distance W | 88 mm |
| max. profile height | 52 mm |
| Notice | For hot-dip galvanized parts, dimensional deviations up to 1 mm are possible. |
