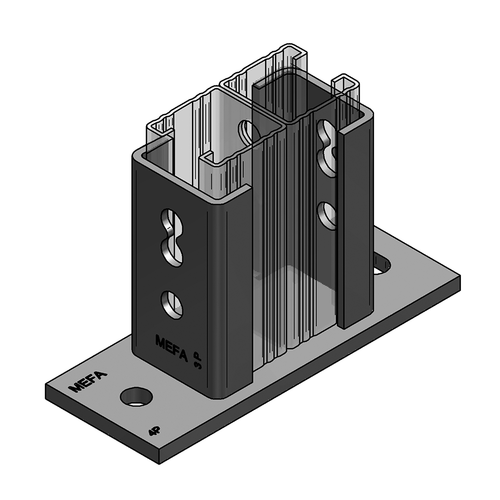

Holder Double C-profile 45 vertical
PDF sheet
Holder Double C-profile 45 vertical
CAD Download
rfa sat dwg dxf

Holder Double C-profile 45 vertical

for Double-C-profile 45/90 hot-dip galv.

Part no. 08120952
EAN/GTIN 4250928447944
Packing unit 10 pcs
Quantity unit pcs
Weight 1,40 kg/pc
Product group 02-081
Price unit 1

Your price
Quantity (pcs):

Product filter:

by Profile type

45/120 45/150 45/26 - 45/150 45/26 - 45/52 45/60 - 45/75 45/90

by Surface

galvanized hot-dip galvanized

by Alignment of plate

vertical vertical / horizontal square
Application area for fixation of profile rails on construction
Profile type 45/90
Profile Double-C-profile
Type of attachment on the building structure
Material Steel
Material type S235
Surface hot-dip galvanized

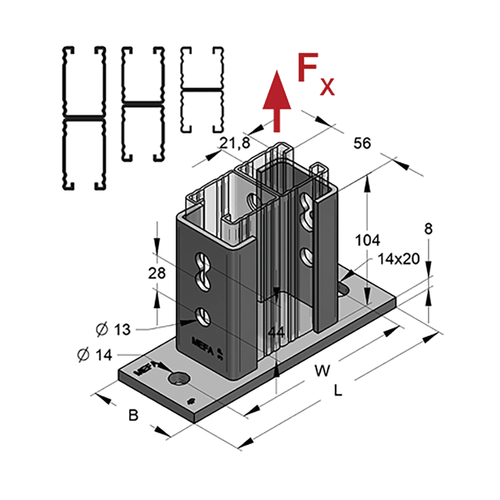

load Fx 13.7 kN
Length plate 186 mm
Width plate 70 mm
Plate thickness 8 mm
Alignment of plate vertical
Hole distance 144 mm
max. profile height 90 mm
