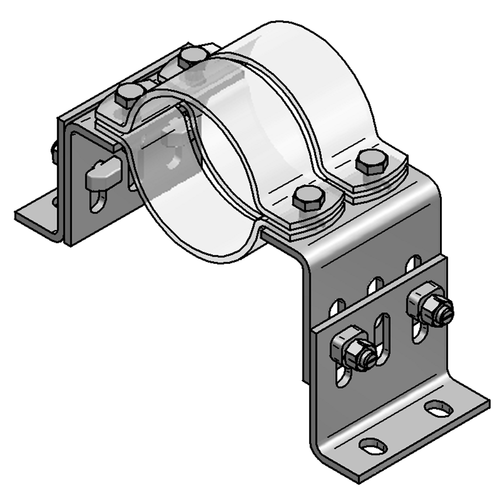

Fixpoint bracket HV 1

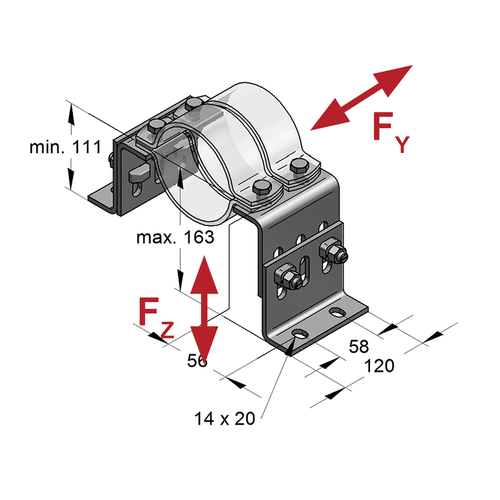

64-273 mm Fy 20 kN 111-163 mm
| Part no. | 00200405/fvz |
| EAN/GTIN | 4250928400000 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 3,58 kg/pc |
| Product group | 03-002 |
| Price unit | 1 |
Your price
|
|
Product filter:
| Application area | Height-adjustable bracket for fixing piping without sound insulation. To be used as a fixed point in conjunction with pipe clamp Titan HD. |
| Pipe clamp type | Titan HD |
| Material | Steel |
| Material type | S235 |
| Surface | hot-dip galvanized |
| Tightening torque T-lock | 120 Nm |
| Tightening torque pipe clamp | 60 Nm |
| min. outside pipe diameter | 64 mm |
| max. outer pipe diameter | 273 mm |
| Length | 120 mm |
| load FY | 20 kN |
| load FZ | 12 kN |
| Number of pipe clamps | 2 |
| min. axis height | 111 mm |
| max. axis height | 163 mm |
| Dimension angle stilt | 120x100x6 mm |
| Dimension side part | 120x100x6 mm |
| Scope of delivery |
2 x angle (foot part) 2 x angle (side part) 4 x hammer lock head 4 / 6 x hexagon bolts and nuts |
