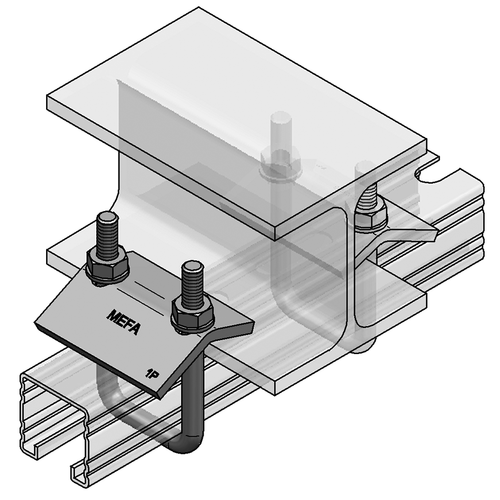

Clamping bow M10 45 V4A
Profile height 26 - 45 Clamping thickness 26 mm
| Part no. | 0481690 |
| EAN/GTIN | 4250928459107 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 0,401 kg/pc |
| Product group | 13-054 |
| Price unit | 1 |
Your price
|
|
| Application area | for mounting of C-profile rail on steel girder |
| Profile type | 45 |
| Material | Stainless steel |
| Material type | V4A |
| load FZ | 4 kN |
| Thread | M10 |
| max. clamping thickness | 26 mm |
| Tightening torque | 15 Nm |
| Profile height | 26 - 45 mm |

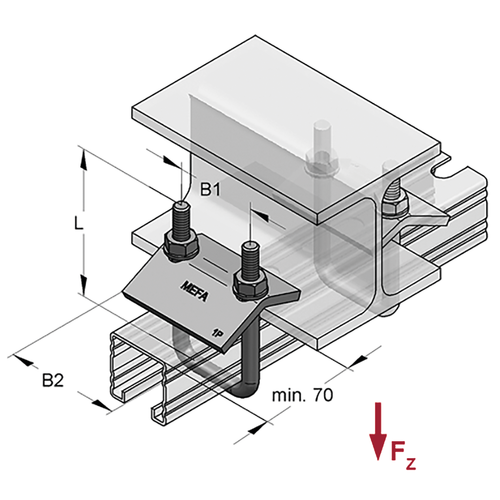

| Center distance U-bolt B1 | 56 mm |
| Width tensioning bracket B2 | 80 mm |
| Length U-bolt L | 90 mm |
| min. edge distance | 70 mm |
