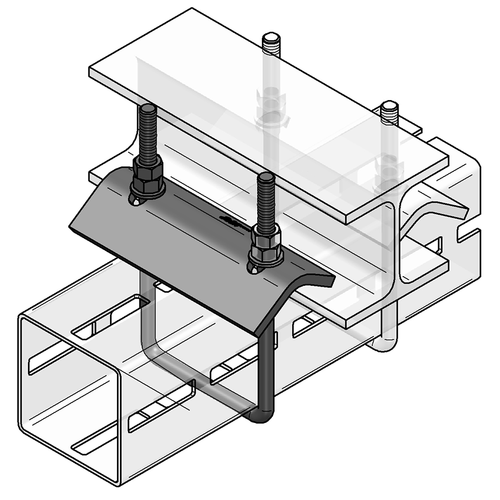

Clamping bow M12 CENTUM XL 100 / 120
Profile height 100 - 120 Clamping thickness 25 mm
| Part no. | 1661001011 |
| EAN/GTIN | 4250928458483 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 1,49 kg/pc |
| Product group | 14-166 |
| Price unit | 1 |
Your price
|
|
Product filter:
by Profile type

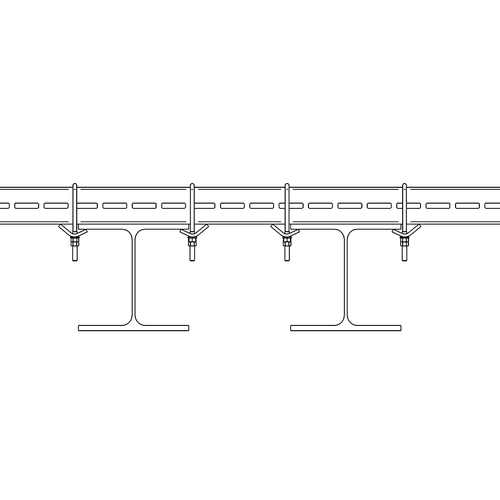

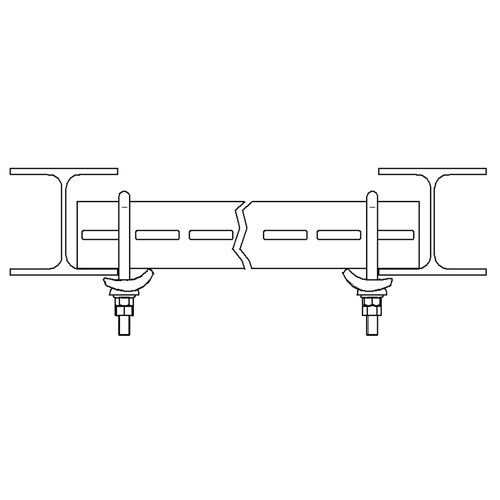

| Application area | for mounting of C-profile rail on steel girder |
| Profile type | XL 100, XL 120 |
| Material | Steel |
| Material type | S235 |
| Surface | hot-dip galvanized |

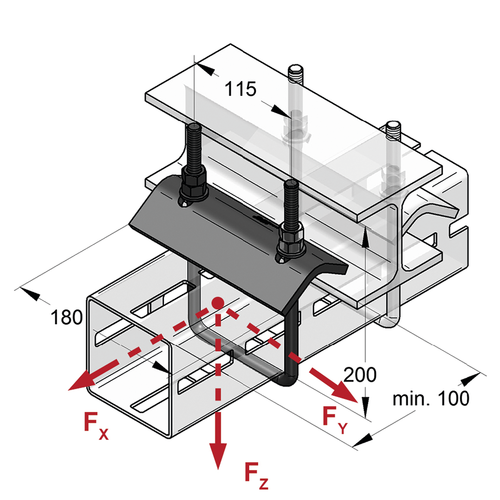

| load FX | 3 kN |
| load FY | 3 kN |
| load FZ | 10 kN |
| Thread | M12 |
| max. clamping thickness | 25 mm |
| Tightening torque | 25 Nm |
| Profile height | 100 - 120 mm |
