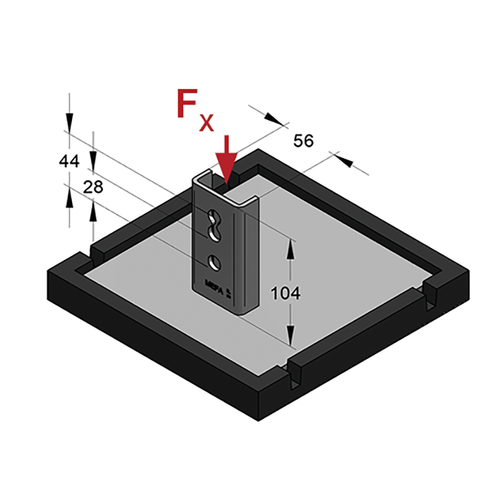

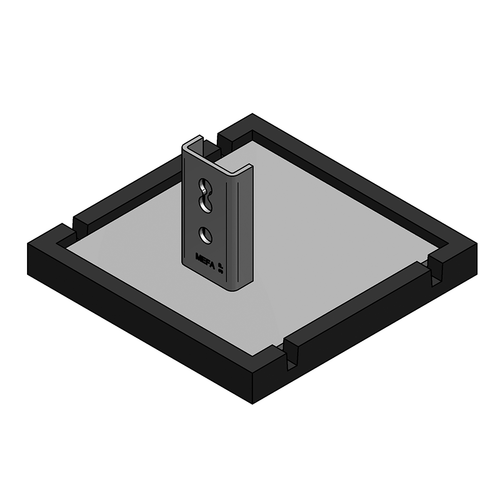

Rooftop holder C-profile 45 square
for C-profile 45/26 - 45/120 hot-dip galv.
| Part no. | 08197500 |
| EAN/GTIN | 4250928420718 |
| Packing unit | 2 pcs |
| Quantity unit | pcs |
| Weight | 3,71 kg/pc |
| Product group | 02-081 |
| Price unit | 1 |
Your price
|
|
Product filter:
| Application area | for the elevation of supporting structures on flat roofs. |
| Profile type | 45/26 - 45/120 |
| Profile | C-profile |
| Type of attachment | flat roof |
| Installation advise | The use of roof brackets on gravel or extensive greening is not recommended. |
| Delivery | 1x rubber pad, 1x holder, 2x hexagon screws M12 x 25, 1x 2-hole tooth plate |
| Material | Steel |
| Material type | S235 |
| Surface | hot-dip galvanized |
| load FX | 4 kN |
| Elongated hole | 14x27 mm |
| Length plate | 200 mm |
| Width plate | 200 mm |
| Plate thickness | 6 mm |
| Alignment of plate | square |
| Hole distance | 150 mm |
| max. profile height | 120 mm |
