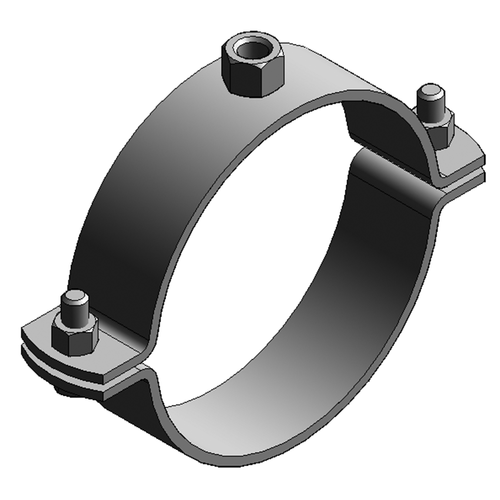

Pipe clamp Titan HD 50x5
508 mm M16 unlined
| Part no. | 007205082 |
| EAN/GTIN | 4250928403810 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 3,61 kg/pc |
| Product group | 01-007 |
| Price unit | 100 |
Your price
|
|
Product filter:
| Application area | Pipe clamp for fastening pipes in the heavy load range. |
| Specification | two-part |
| Connection | M16 |
| Closure | Screw coupling |
| Material | Steel |
| Material type | S235 |
| Surface | galvanized |
| Sound insulation lining | unlined |

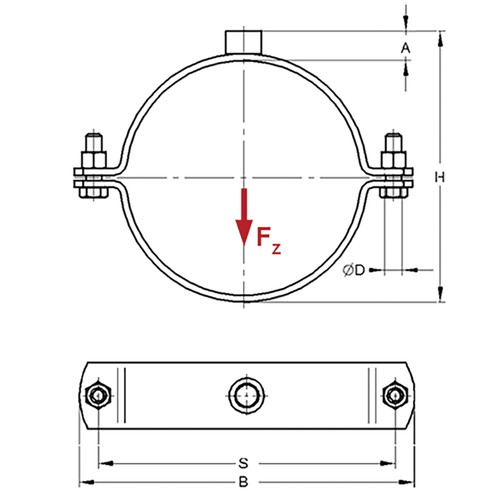

| Center distance S | 559 mm |
| Connection height A | 20 mm |
| Width B | 588 mm |
| Höhe H | 533 mm |
| Material dimension | 50x5 mm |
| load FZ | 16 kN |
| Outer pipe diameter | 508 mm |
| Closure screw | M12 |
| Delivery time | 5 - 8 working days ex works. Exchange and return are excluded. |
| Note | not certified acc. to RAL |
