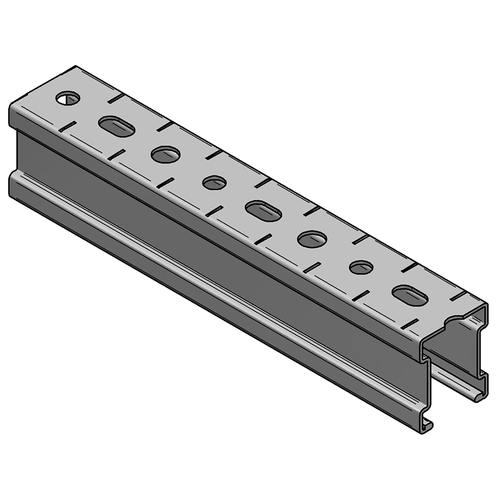

Profile rail C-profile Stex
35 / 42 / 1,5 mm L= 6 m pre-galv.
Part no. | 12735426 |
EAN/GTIN | 4250928424464 |
Packing unit | 48 m |
Bundle | 360 m |
Quantity unit | m |
Weight | 1,63 kg/m |
Product group | 02-127 |
Price unit | 1 |
Your price
|
Application area | ightweight profile rail with quick connection option. |
Specification | Marking for fi t-up aid and to cut rails |
Type of attachment | glide fast connection |
Material | Steel |
Material type | S250 |
Surface | pre-galvanized |

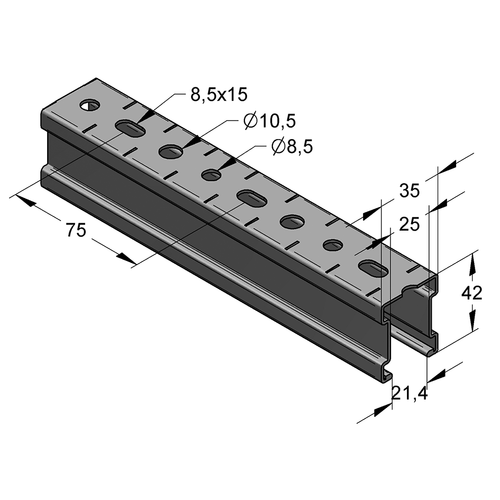

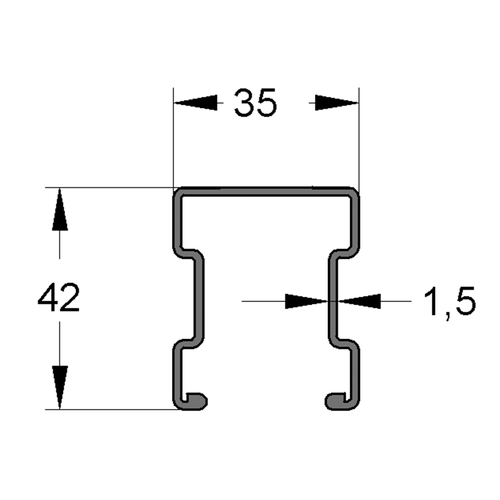

Width | 35 mm |
Height | 42 mm |
Thickness | 1.5 mm |
Length | 6 m |
Hole-Ø | 8.5 mm |
Hole diameter 1 | 8.5 mm |
Hole diameter 2 | 10.5 mm |
Elongated hole | 8.5x15 mm |
Area (least cross section of the profile rail) | 1.99 cm² |
Axial angular impulse ly | 4.17 cm4 |
Axial angular impulse lz | 4.05 cm4 |
Grid dimension | 25 mm |
Rail slot width | 22 mm |
Centroid distance eo | 1.97 cm |
Centroid distance eu | 2.23 cm |
Centroid distance ez | 1.75 cm |
Elastic limit | 250 N/mm² |
Radius of inertia iy | 1.44 cm |
Radius of inertia iz | 1.43 cm |
Section modulus Wy | 1.87 cm³ |
Section modulus Wz | 2.31 cm³ |
Notice | Full bundles, only |
