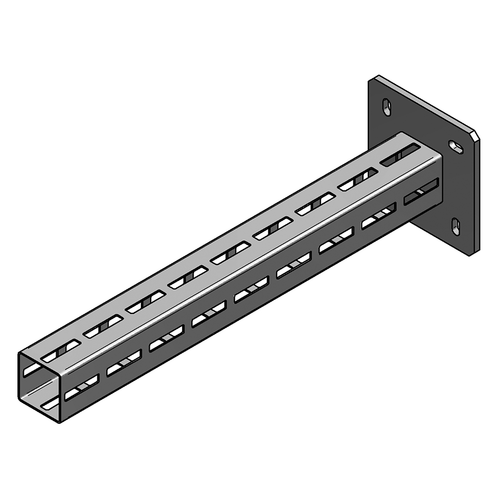

Console CENTUM XL 80
L= 720 mm hot-dip galv.
| Part no. | 1630800720 |
| EAN/GTIN | 4250928458438 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 7,26 kg/pc |
| Product group | 14-163 |
| Price unit | 1 |
Your price
|
|
| Application area | Console for the production of cantilever structures for the support of suspended and standing pipe loads. |
| Material | Steel |
| Surface | hot-dip galvanized |

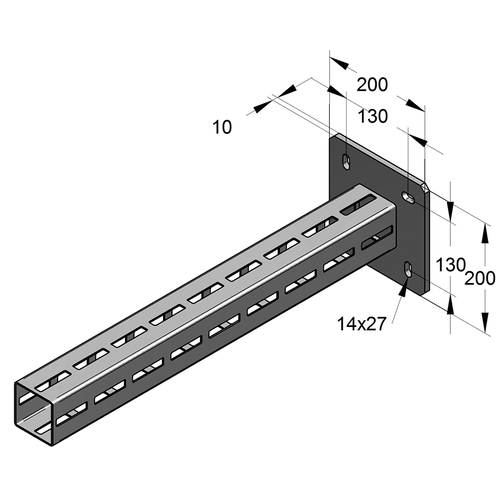

| Width plate | 200 mm |
| Length plate | 200 mm |
| Hole distance | 130 mm |
| Plate thickness | 10 mm |
| Width profile | 80 mm |
| Profile height | 80 mm |
| Length console L | 720 mm |
| Elongated hole plate | 27x14 mm |
| load F1 | 8,38 kN |
| load F2 | 4,19 kN |
| load q0 | 11,64 kN/m |
| Profile thickness | 2,5 mm |
