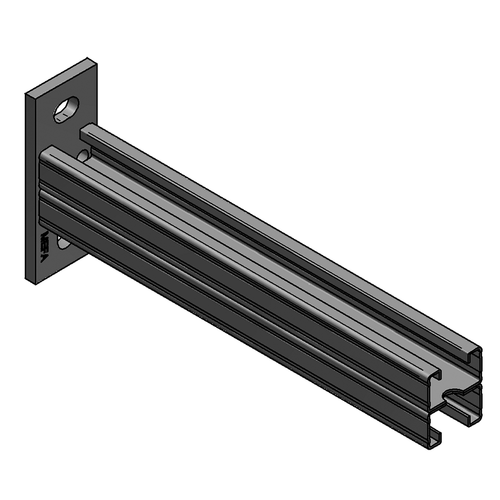

Console C-profile 45/52
L= 315 mm Plate vertical galv.
| Part no. | 18070315 |
| EAN/GTIN | 4250928437754 |
| Packing unit | 15 pcs |
| Quantity unit | pcs |
| Weight | 1,21 kg/pc |
| Product group | 02-083 |
| Price unit | 1 |
Your price
|
|
| Application area | Console for the production of cantilever structures for the support of suspended and standing pipe loads. |
| Material | Steel |
| Surface | galvanized |

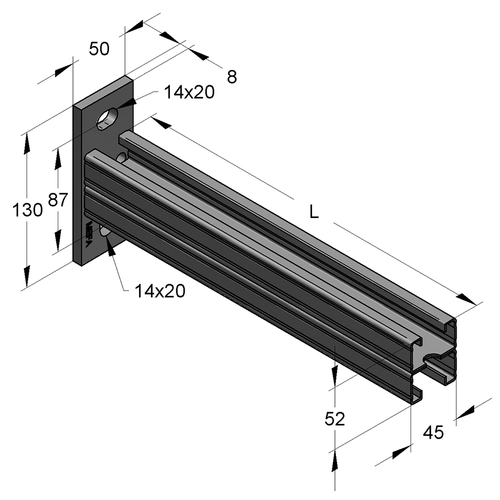

| Width plate | 50 mm |
| Length plate | 130 mm |
| Hole distance | 87 mm |
| Plate thickness | 8 mm |
| Width profile | 45 mm |
| Profile height | 52 mm |
| Length console L | 315 mm |
| Elongated hole plate | 14x20 mm |
| load F1 | 2,93 kN |
| load F2 | 1,47 kN |
| load q0 | 9,3 kN/m |
| Profile thickness | 1,5 mm |
