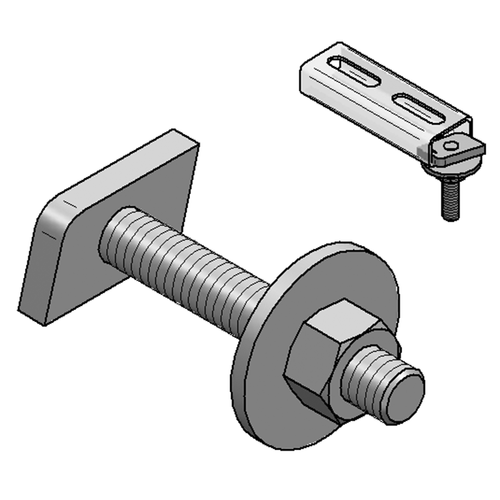

Hammer head C-profile 27
M8 x 30 mm
| Part no. | 0695300 |
| EAN/GTIN | 4250928415745 |
| Packing unit | 100 pcs |
| Quantity unit | pcs |
| Weight | 0,0279 kg/pc |
| Product group | 02-069 |
| Price unit | 100 |
Your price
|
|
Product filter:
| Application area | Should preferably be used for pipe clamp mounting |
| Profile type | 27 |
| Type of attachment | For glide fast connections and shear hole haunch connections with MEFA profile rails |
| Material | Steel |
| Material type | S235 |
| Surface | galvanized |

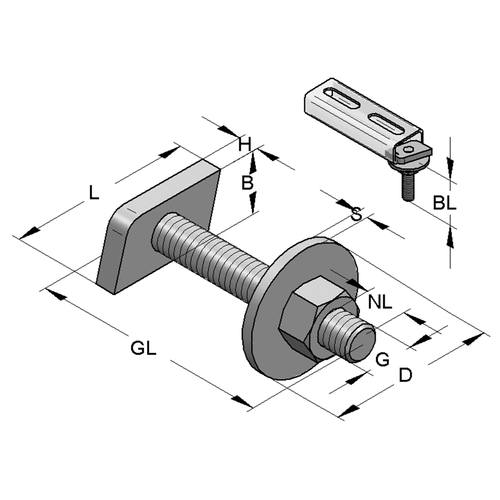

| Thread G | M8 |
| Length thread GL | 30 mm |
| Usable length NL | 16,3 mm |
| Overall length BL | 25 mm |
| Length hammer head L | 24 mm |
| Width hammer head H | 13 mm |
| Thickness hammer head H | 4 mm |
| Diameter washer D | 25 mm |
| Thickness washer S | 2 mm |
