Perfect hold on flat roofs

ROOFTOP PROFESSIONALS

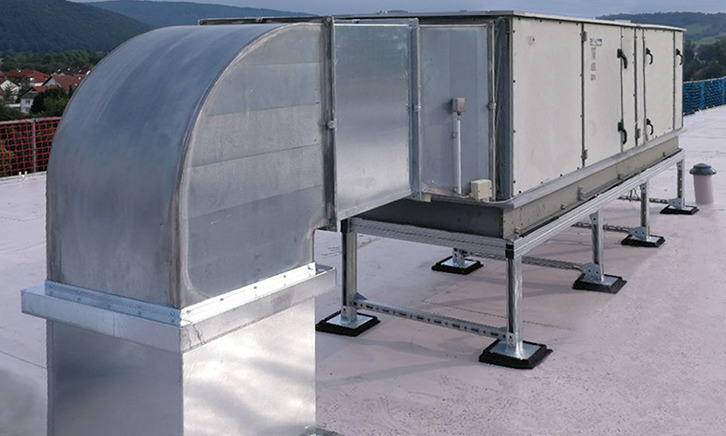

Our rooftop holders are ideal for the mounting of ventilation ducts, rooftop constructions or other rail constructions on flat roofs.

The advantages at a glance:

Stable stand on flat roofs
Compensation of roof unevenness (e.g. gravel roof)
Compensation of roof pitch up to 4° is possible
Weather-resistant
Slip-resistant
Very good load distribution
High pressure absorption
Protection against damage to roof skin

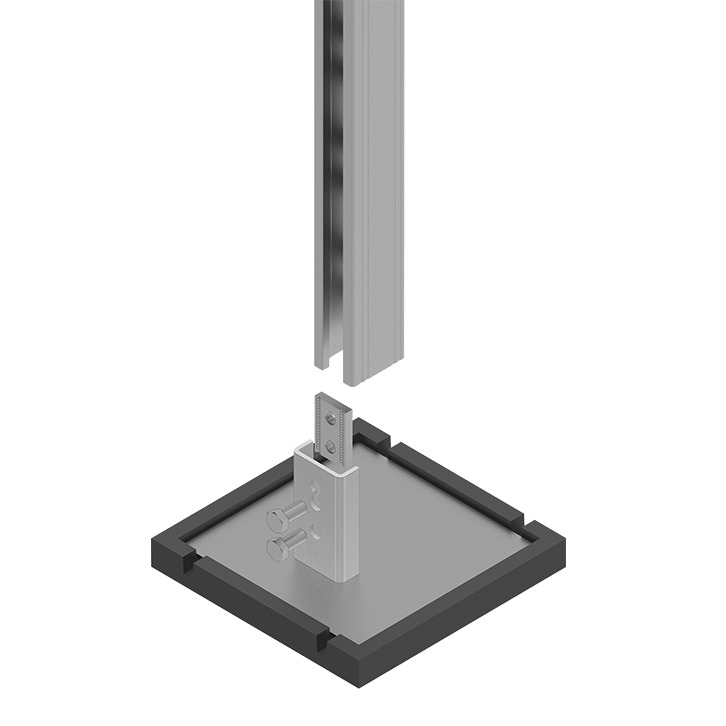

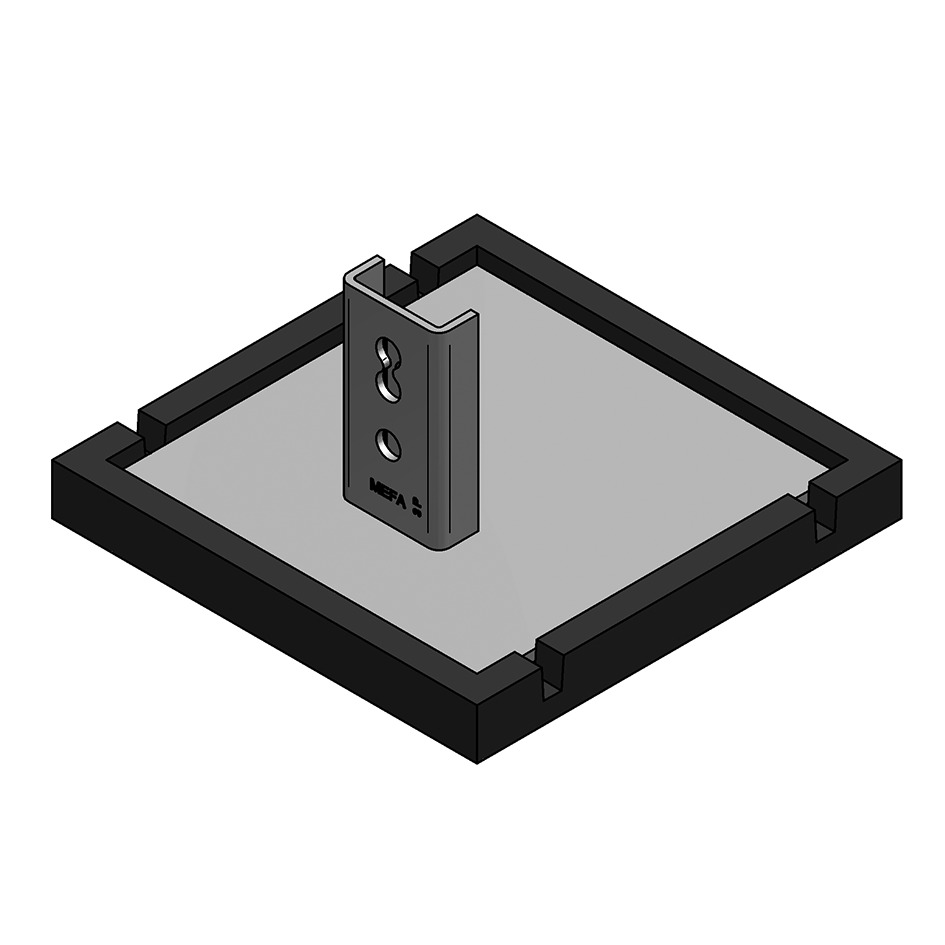

ROOFTOP HOLDER

Profile rail type: 45/26, 45/45, 45/52, 45/60, 45/75, 45/90, 45/120

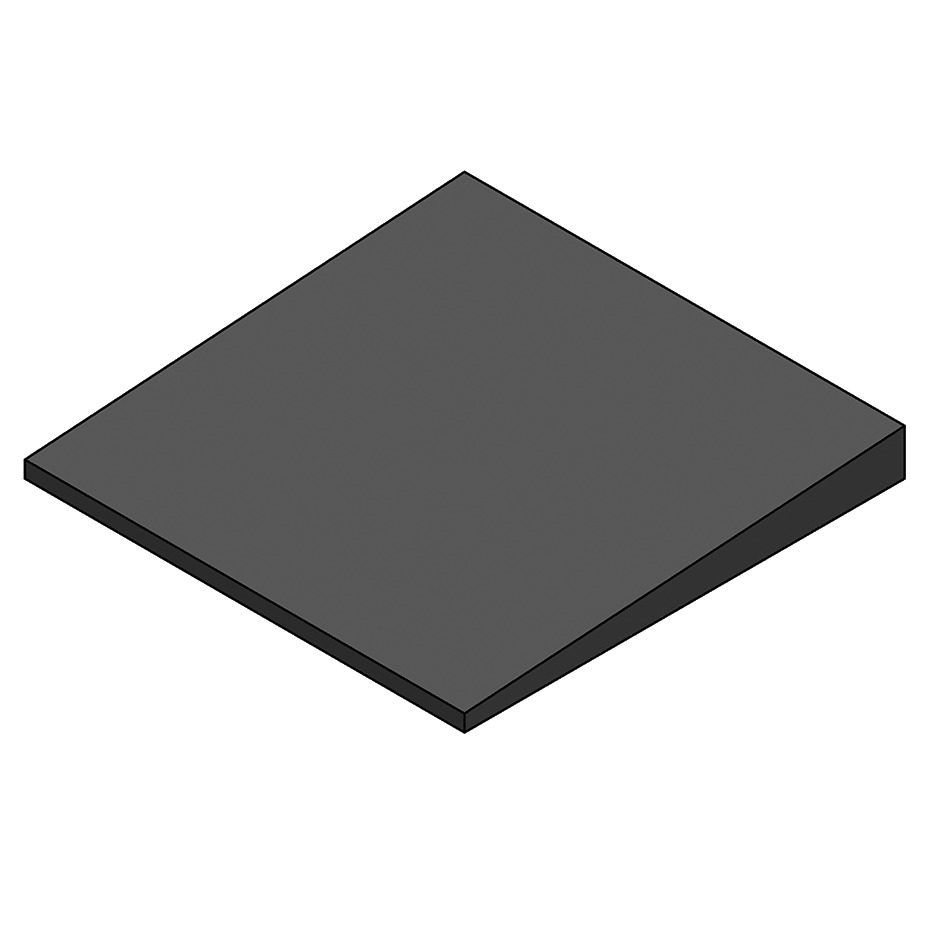

Installation advise: The rooftop holder is delivered completely pre-assembled with a 2-hole tooth plate and screws. For compensation of possible roof pitch (up to 4°) place rubber wedge below rubber pad.

Separation fleece: Recommended for the use on PVC membrane roof surfaces to prevent migration of plasticizers.

Safe screwing (pre-assembled)
Hot-dip galvanized
Applicable for all 45/45 single and double rails
Up to 4 kN pressure load

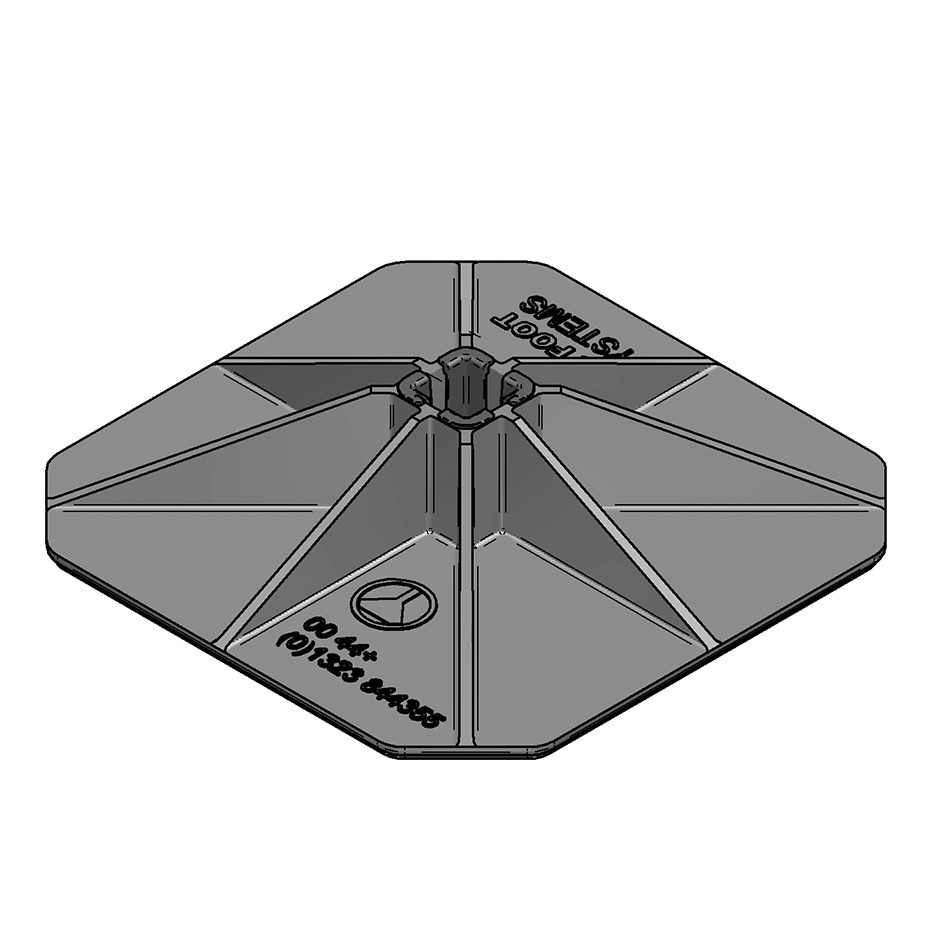

BIG FOOT®

Profile rail type: 45/45

Installation advise: Feet and rubber pads shall be positioned one upon the other. For compensation of roof pitch, replace the rubber pad by the rubber wedge (4°). The separation fleece is preventing from damage to roofing (membrane) through plasticizers.

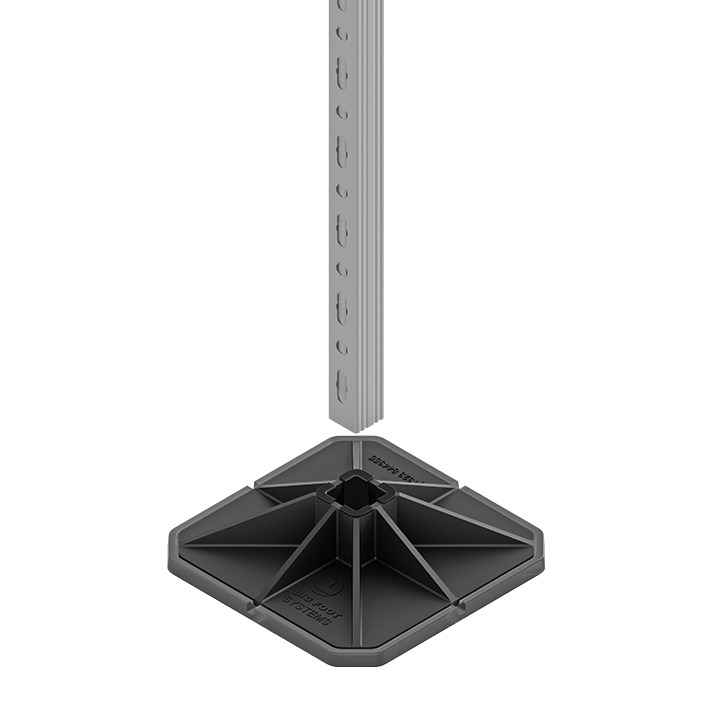

Plug in of profiled rail 45 into the rooftop holder for mounting.

Separation fleece: Recommended for the use on PVC membrane roof surfaces
to prevent migration of plasticizers.

Quick plug connection
Weather-resistant plastic
Applicable for all 45/45 single rails
Up to 5 kN pressure load

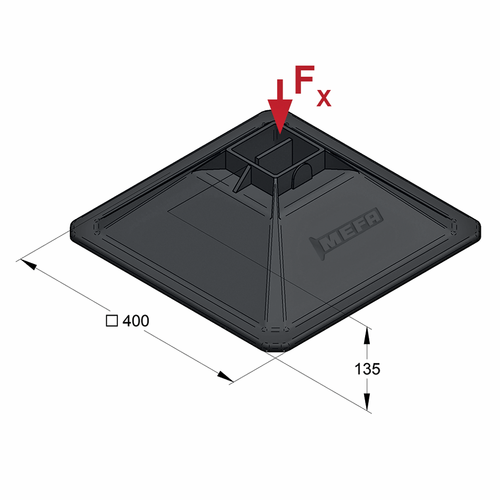

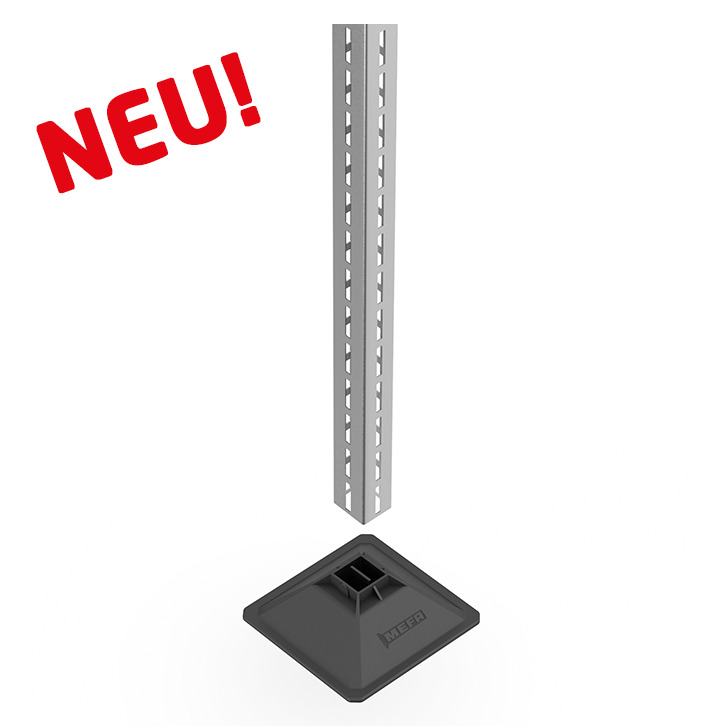

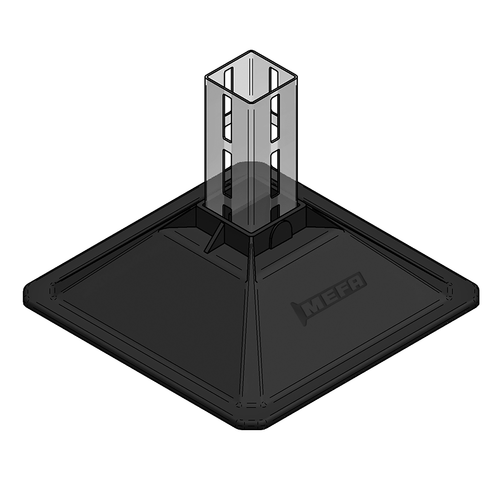

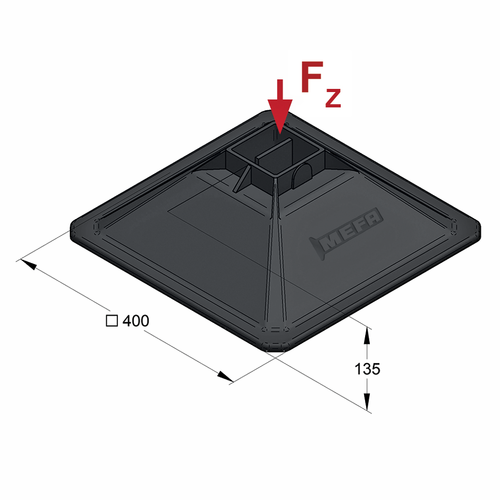

CENTUM® HOLDER XL 80

For profile type: CENTUM® XL 80

Installation advise: The pre-mounted floor pad (rubber) prevents softener damage to roofing membrane through plasticizers. Plug in of the XL 80 profile into the rooftop holder for mounting.

Quick plug connection
Weather-resistant plastic
Applicable for the CENTUM® XL80 profile
Up to 10 kN pressure load

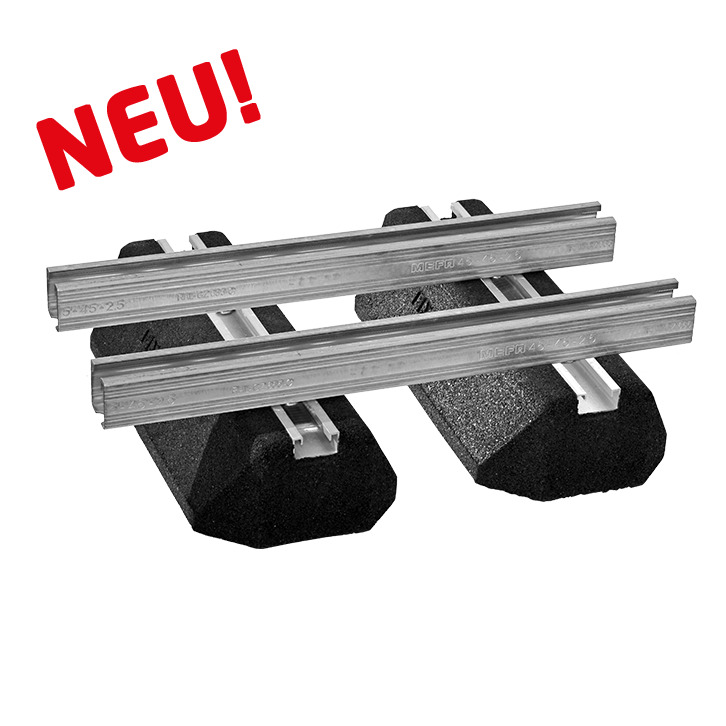

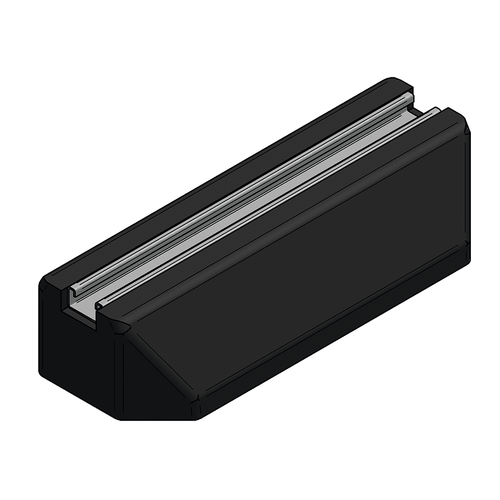

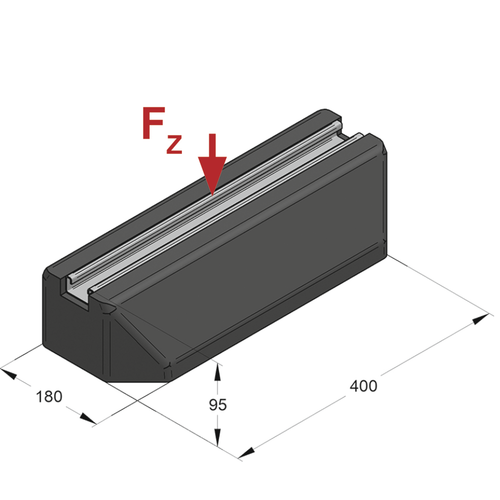

ROOFTOP MULTI SUPPORT

For profile type: 45/26, 45/45, 45/60, 45/75

Installation advise: The Rooftop Multi Support can be used as a base for rail holders or ventilation devices. To prevent larger devices from tipping over, two Rooftop Multi Supporters can be used on each side. Recessed aluminum rail (40 x 20 mm) allows easy assembly while at the same time damping structure-borne noise.

Separation fleece: Recommended for the use on PVC membrane roof surfaces to prevent migration of plasticizer. The Big Foot® Separation fleece 450 is sufficient for two Rooftop Multi Supporters.

Recommended accessories: Tooth plate S with zinc-nickel coating
