The screw anchor is suitable for cracked and non-cracked concrete of grade C20/25 to C50/60 as well as for solid masonry,
aerated concrete and wood.

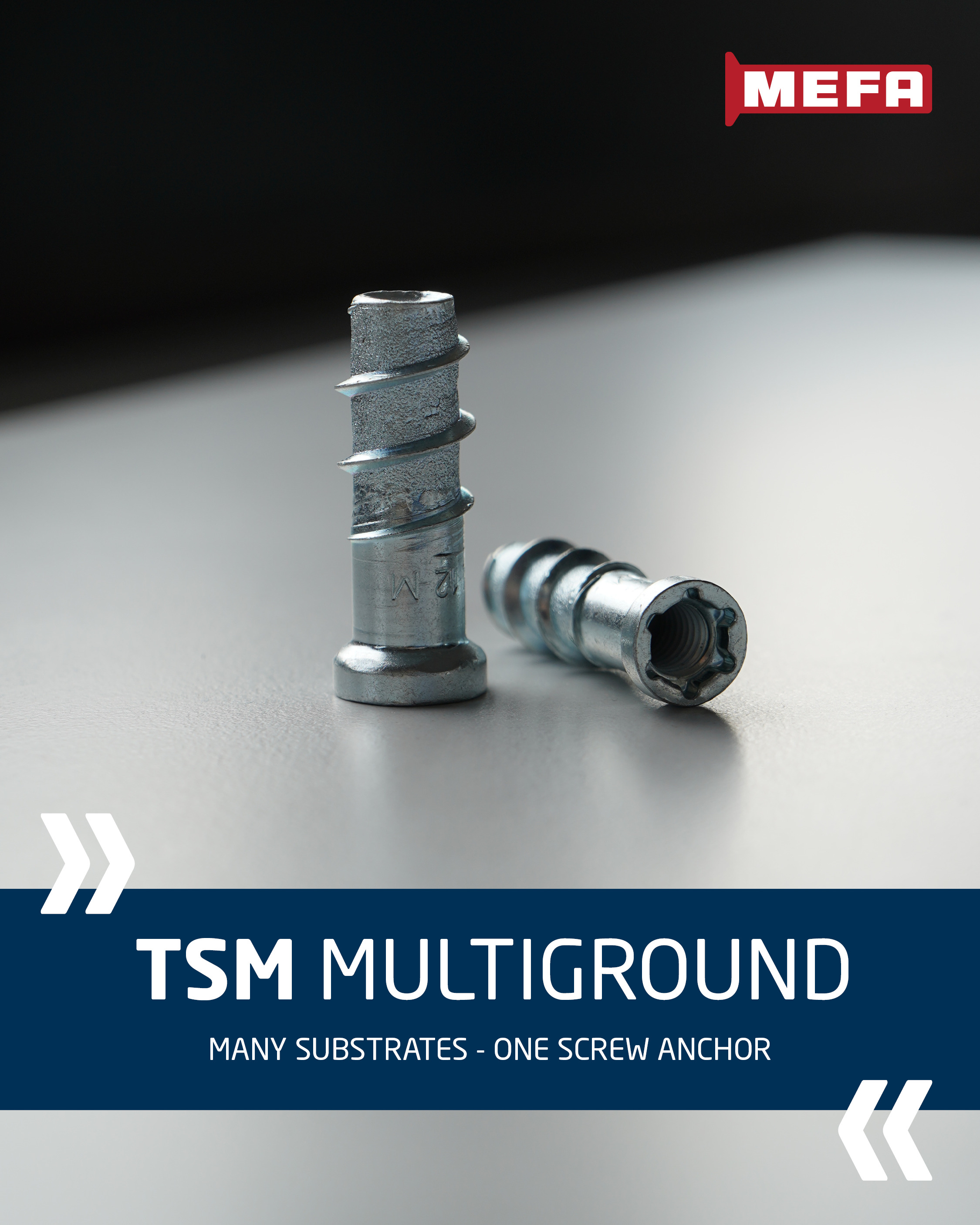

TSM Multiground
One screw anchor - many substrates
ONE SCREW ANCHOR - DIFFERENT SUBSTRATES? YES!

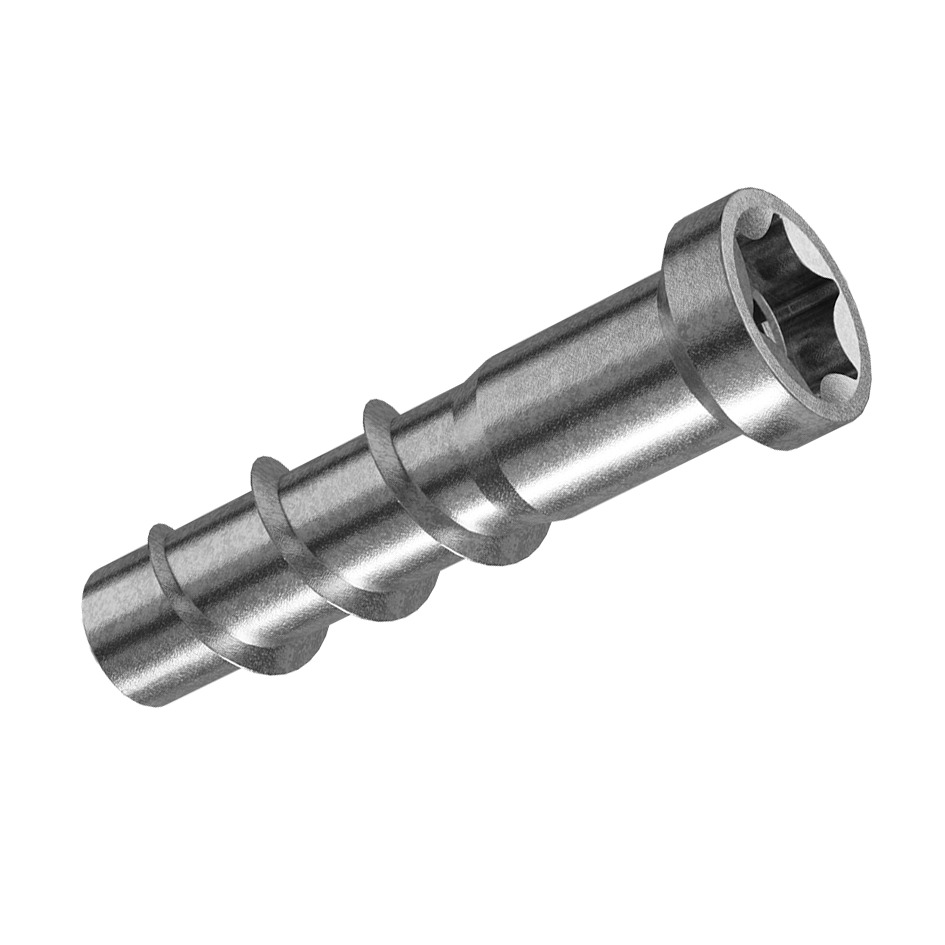

The practical and high-quality TSM Multiground screw anchor with female thread is the ideal solution for simple overhead installation. The screw anchor has ETA approval 23/0542 for multiple fixings in cracked and non-cracked concrete of grades C20/25 to C50/60. It is also suitable for solid masonry, aerated concrete and wood.
Many different applications are possible indoors:
- Fastening brackets, ceiling suspensions or pipe clamps
- Fastening rails directly to the substrate
- Suspensions in the HVAC sector
- Temporary anchoring with threaded rods and screws
Discover product here
All advantages at a glance
SIMPLE ASSEMBLY
Installation is significantly quicker and easier compared to conventional drop-in anchors, especially for overhead installation. It can also be easily dismantled if required.
TIME SAVING
Using the TSM Multiground results in a time saving of around 30 % compared to a drop-in anchor with a manual setting tool.
SMALL EDGE DISTANCES
Small edge and center distances of 40 mm each enable installation close to the edge (distances with conventional drop-in anchors > 100 mm).
HIGH LOAD VALUES
Thanks to the special thread geometry, high load values in concrete are possible.
NO SEPARATE TOOL
No separate spreading tool is required to install the TSM Multiground. It is simply done with a tangential impact wrench.
FLUSH WITH THE SURFACE
The result is visually appealing thanks to the flush-mounted screw anchor and offers a clean installation appearance.
ASSEMBLY INSTRUCTIONS AND AREAS OF APPLICATION
TSM Multiground

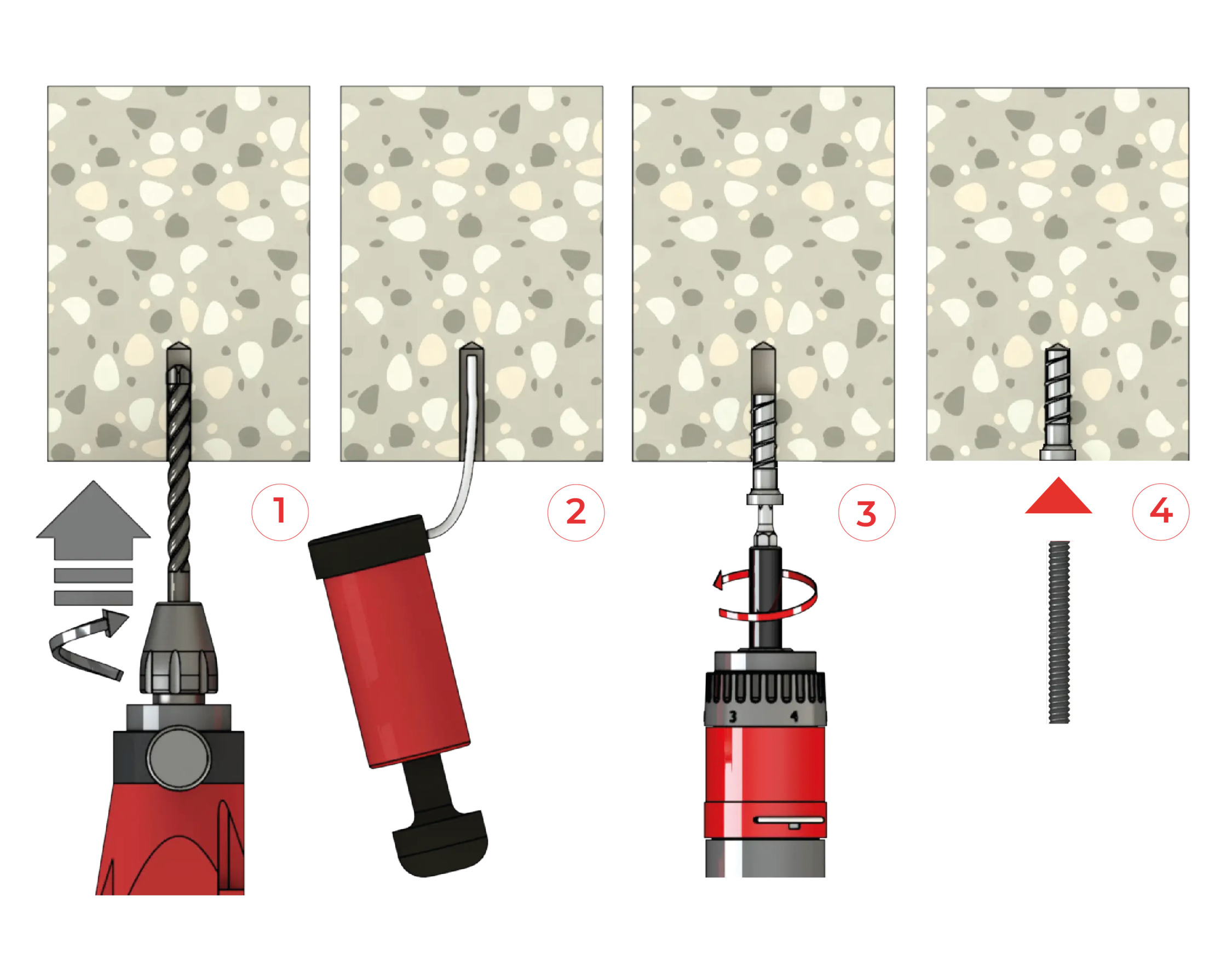

ASSEMBLY INSTRUCTIONS
Assembly is that simple:
- Drill the borehole.
- Clean the borehole thoroughly according to the instructions.
- Screw in the TSM Multiground drop-in anchor using a tangential screwdriver.
- After screwing in flush with the surface, fasten the attachment part with a standard metric screw or threaded rod.
