Place - align - fix

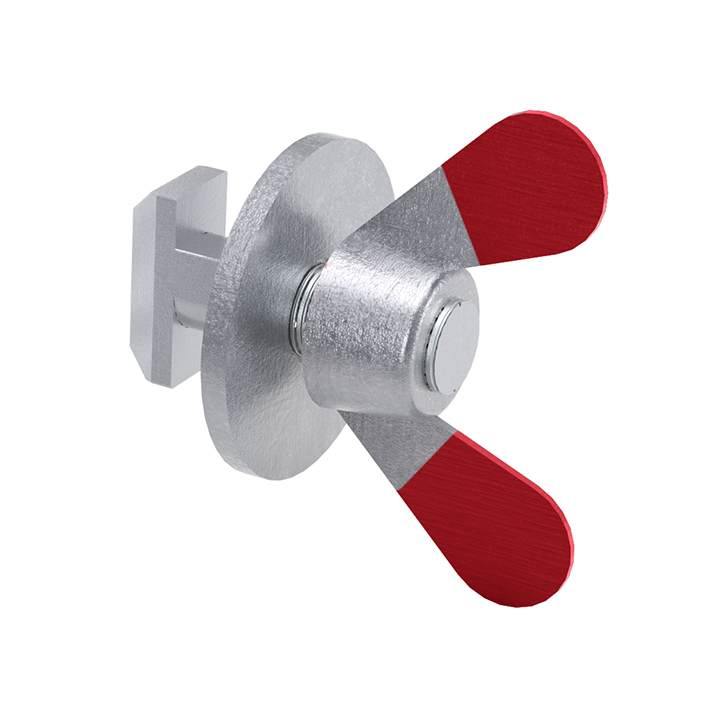

Adjustment aid for temporary fixation of CENTUM® assembly parts.
The advantages at a glance:
- Simplifies the assembly
- No special tools required - tighten and loosen by hand
- Reusable again and again
Now even easier to assemble CENTUM® components

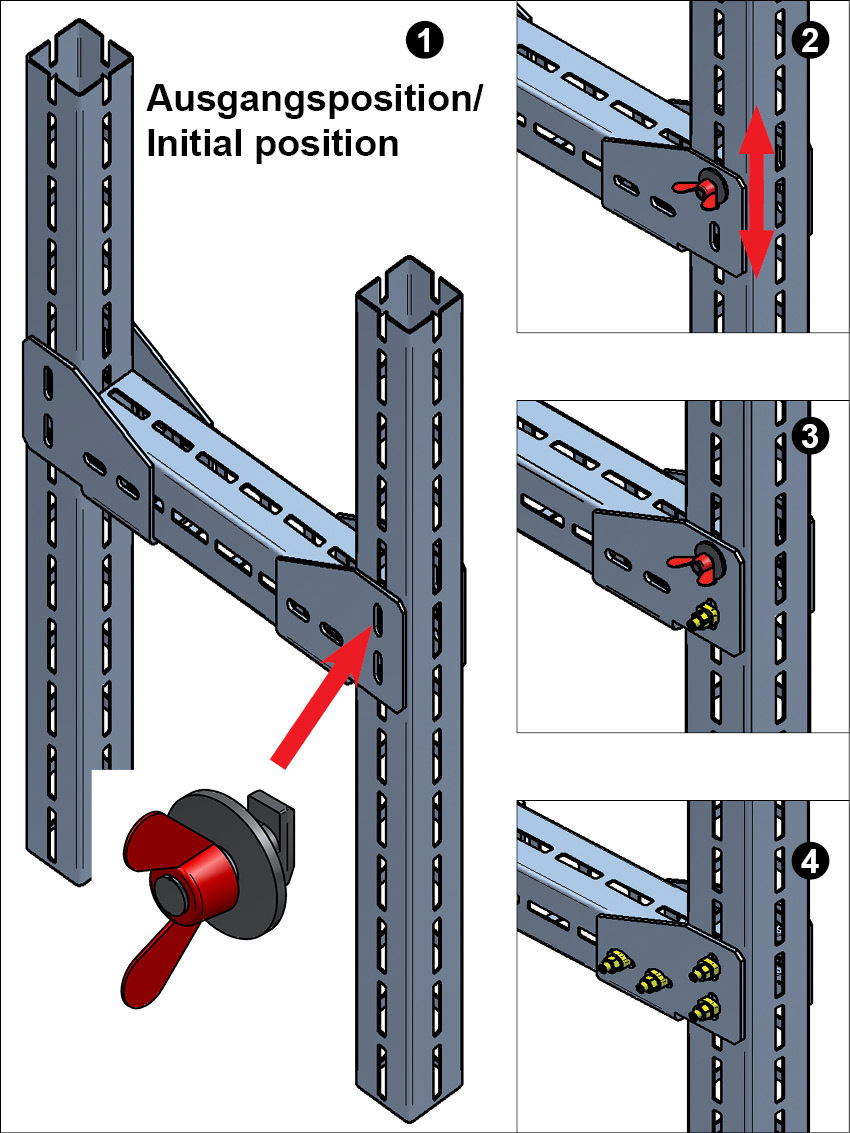

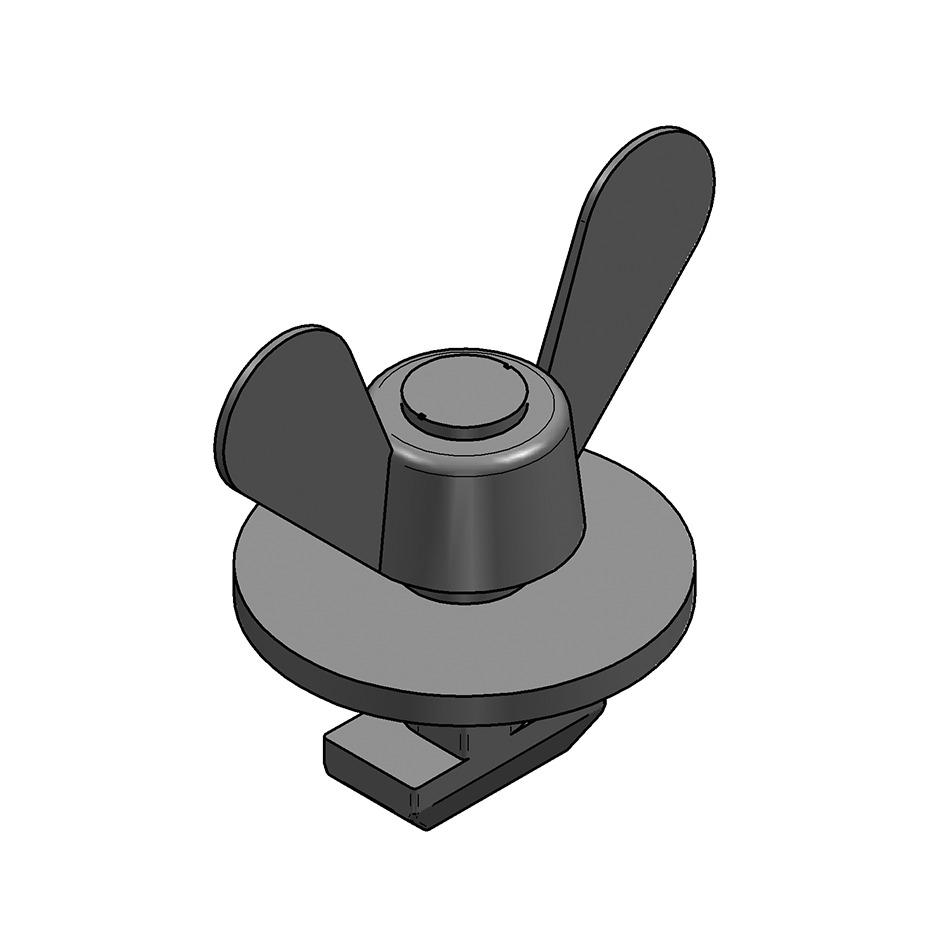

1. Placing: Insert CENTUM® FixBOB through component
and profile at desired position and tighten it hand-tight.
2. Align: To align the profile, loosen the CENTUM® FixBOB
and tighten again (hand-tight only) after reaching desired
position/location.
3. Fixation: Insert T-lock head through component and
profile in desired position. Tighten T-lock head
professionally according to „assembly instructions for
T-lock head“.
4. Final assembly: Loosen and remove CENTUM® FixBOB.
Instead of the CENTUM® FixBOB, insert T-lock head
through the component and profile and tighten again
properly according to „assembly instructions for
T-lock head“.
You have further questions? We will be happy to advise you.
Please feel free to contact our export department.
Video instruction for the professional assembly of the T-lock head toothed:

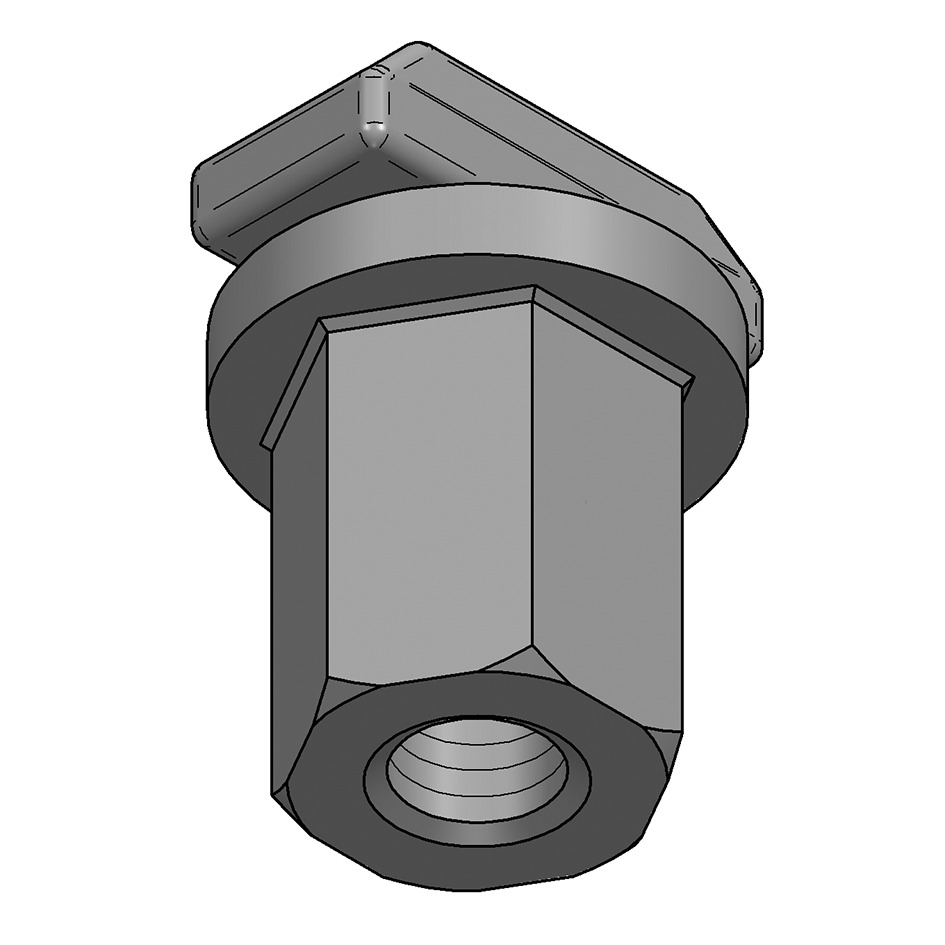

Product overview: CENTUM® profile connections

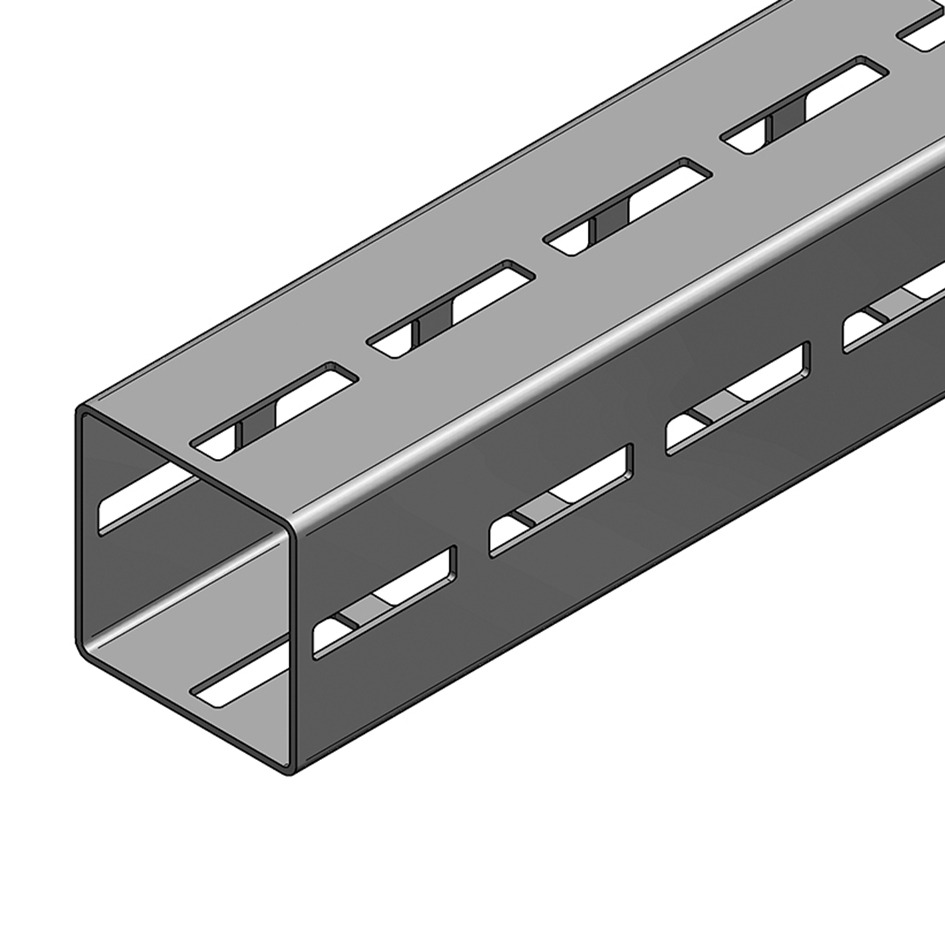

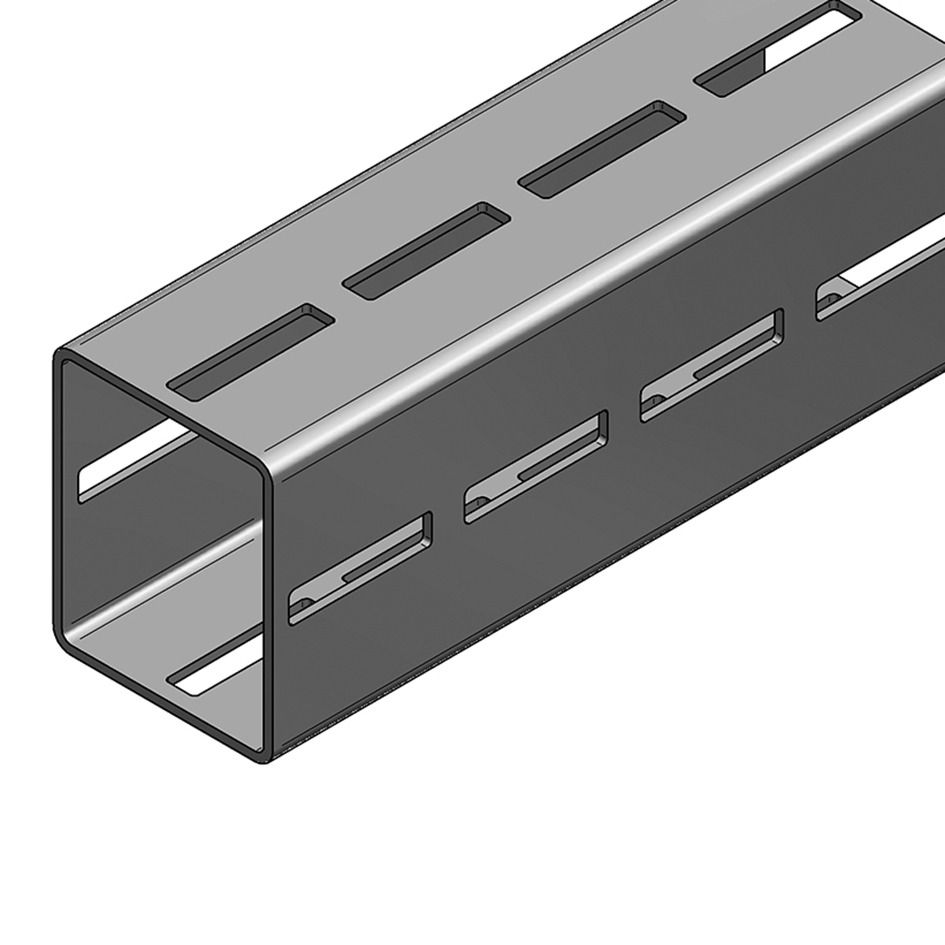

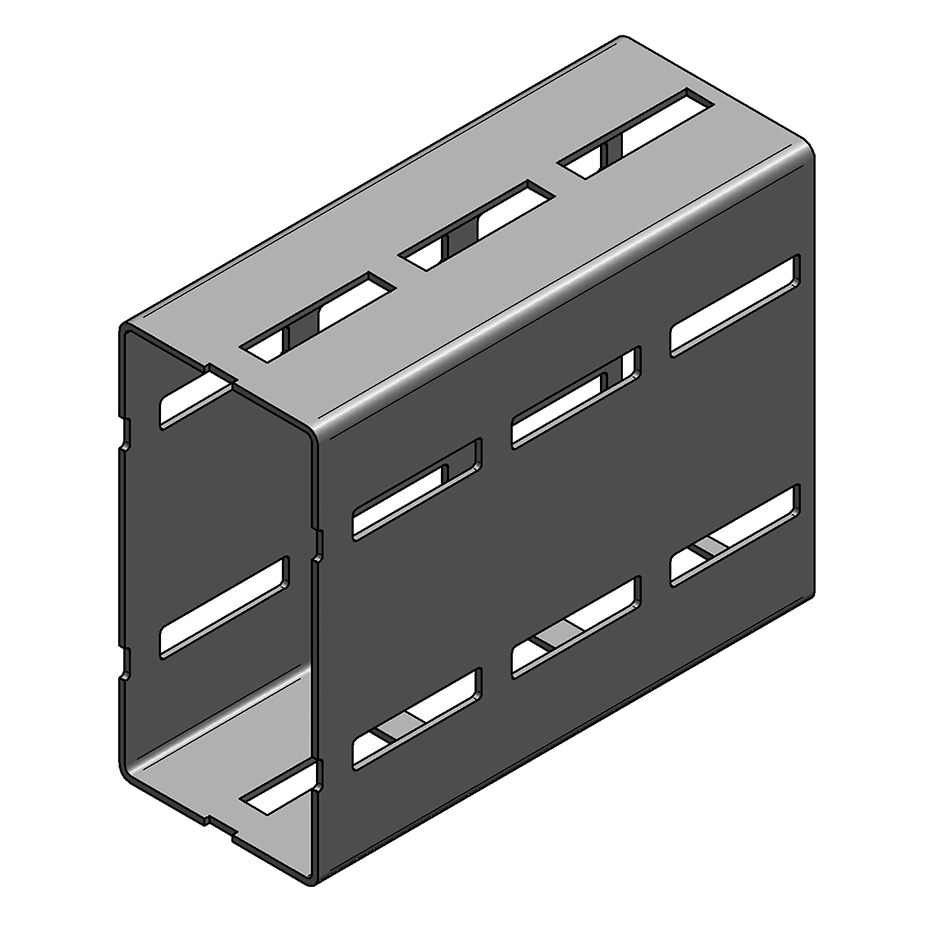

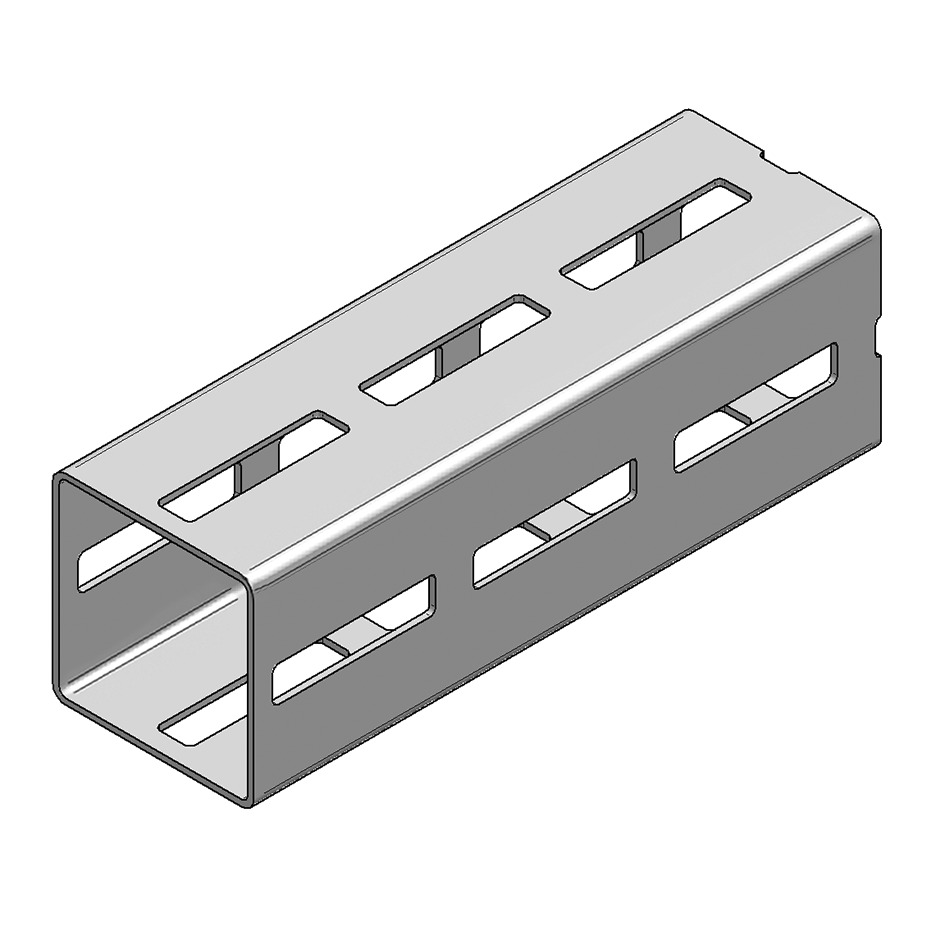

CENTUM® Profile rails
